Description
General part information
LMR-100-NF-SMRA(QTY:4ft)

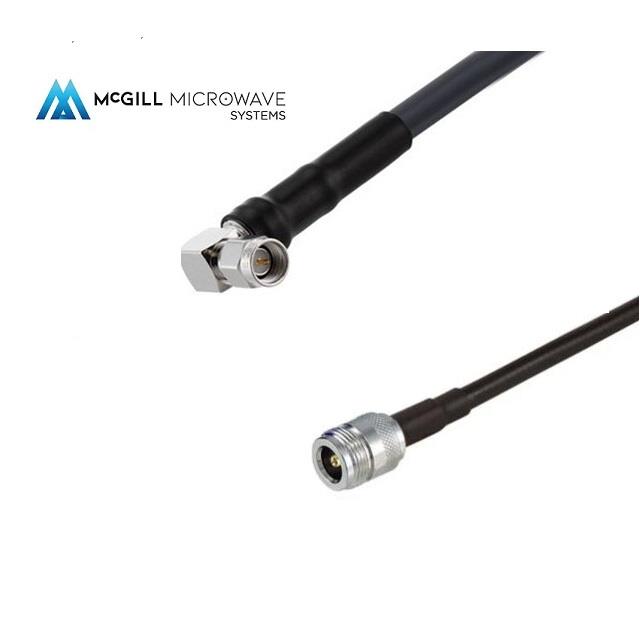

Cable Assembly Coaxial SMA to N-Type LMR 100 48.0" (1.2m) 4.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | LMR-100-NF-SMRA(QTY:4ft) |
|---|---|
| 1st Connector | SMA Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | LMR |
| Cable Type Size | 100 |
| Color | Black |
| Frequency - Max | 6000 MHz |
| Length | 48 in |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA, N-Type |
