FMCA3158-60
ActiveFairview Microwave
CBL ASSY SHVJACK-SHVJACK 60
FMCA3158-60
ActiveFairview Microwave
CBL ASSY SHVJACK-SHVJACK 60
Description
General part information
FMCA3158-60

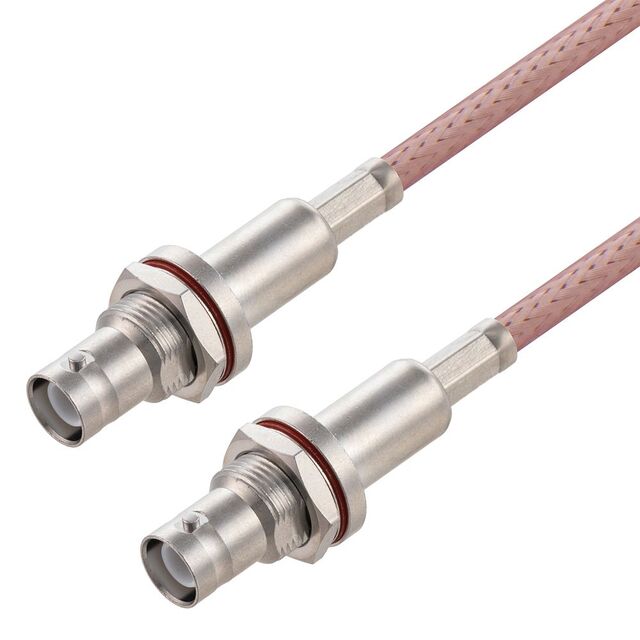

Cable Assembly Coaxial SHV to SHV RG-142 60.0" (1.5m) 5.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA3158-60 |
|---|---|
| 1st Connector | SHV Jack |
| 1st Connector Mounting Feature | Front Side Nut, Bulkhead |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | SHV Jack |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | RG, 142 |
| Color | Tan |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 300 MHz |
| Length | 1524 mm |
| Length (ft) | 5 ft |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | SHV |
