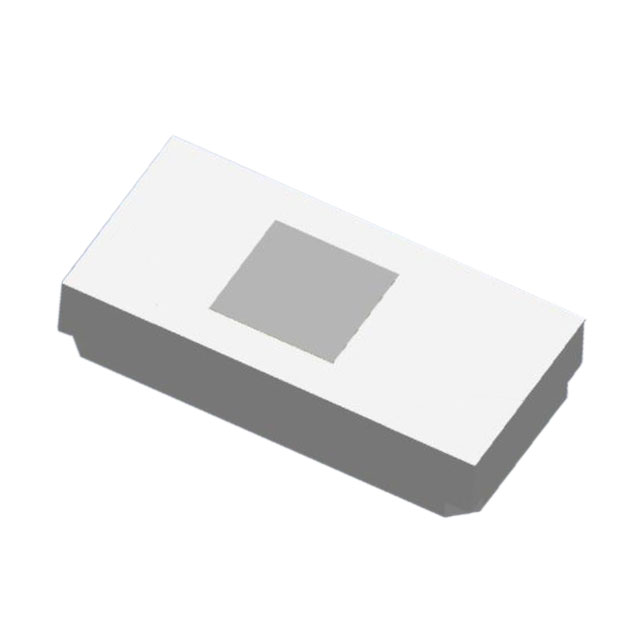

SML-LX0201USBC-TR
ActiveLumex Opto/Components Inc.
LED BLUE CLEAR 2SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SML-LX0201USBC-TR
ActiveLumex Opto/Components Inc.
LED BLUE CLEAR 2SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SML-LX0201USBC-TR | SML-LX0201 Series |
|---|---|---|
| Color | Blue | White, Green, Blue |
| Configuration | Independent | Independent |
| Current - Test | 2 mA | 2 mA |
| Height (Max) [Max] [z] | 0.46 mm | 0.46 mm |
| Lens Color | Colorless | Yellow, Colorless |
| Lens Size [x] | 0.65 mm | 0.65 mm |
| Lens Size [y] | 0.36 mm | 0.36 mm |
| Lens Style | Rectangle with Flat Top | Rectangle with Flat Top |
| Lens Transparency | Clear | Clear |
| Millicandela Rating | 15 mcd | 15 - 100 mcd |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 2-SMD, No Lead | 2-SMD, No Lead |
| Size / Dimension [x] | 0.65 mm | 0.65 mm |
| Size / Dimension [y] | 0.38 mm | 0.38 mm |
| Supplier Device Package | 2-SMD | 2-SMD |
| Viewing Angle | 110 ° | 110 ° |
| Voltage - Forward (Vf) (Typ) | 2.6 V | 2.6 - 2.8 V |
| Wavelength - Peak | 465 nm | 465 - 520 nm |
SML-LX0201 Series
LED WHITE NEUTRAL INGAN 2SMD
| Part | Configuration | Millicandela Rating | Viewing Angle | Size / Dimension [x] | Size / Dimension [y] | Color | Lens Color | Mounting Type | Current - Test | Package / Case | Voltage - Forward (Vf) (Typ) | Height (Max) [Max] [z] | Lens Size [x] | Lens Size [y] | Lens Style | Supplier Device Package | Lens Transparency | Wavelength - Peak |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Lumex Opto/Components Inc. SML-LX0201NWD-TR | Independent | 60 mcd | 110 ° | 0.65 mm | 0.38 mm | White | Yellow | Surface Mount | 2 mA | 2-SMD, No Lead | 2.8 V | 0.46 mm | 0.65 mm | 0.36 mm | Rectangle with Flat Top | 2-SMD | ||
Lumex Opto/Components Inc. SML-LX0201UPGC-TR | Independent | 100 mcd | 110 ° | 0.65 mm | 0.38 mm | Green | Colorless | Surface Mount | 2 mA | 2-SMD, No Lead | 2.7 V | 0.46 mm | 0.65 mm | 0.36 mm | Rectangle with Flat Top | 2-SMD | Clear | 520 nm |
Lumex Opto/Components Inc. SML-LX0201USBC-TR | Independent | 15 mcd | 110 ° | 0.65 mm | 0.38 mm | Blue | Colorless | Surface Mount | 2 mA | 2-SMD, No Lead | 2.6 V | 0.46 mm | 0.65 mm | 0.36 mm | Rectangle with Flat Top | 2-SMD | Clear | 465 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.32 | |
| 10 | $ 0.25 | |||
| 100 | $ 0.11 | |||
| 500 | $ 0.10 | |||
| 1000 | $ 0.08 | |||
| 2000 | $ 0.07 | |||
| Digi-Reel® | 1 | $ 0.32 | ||
| 10 | $ 0.25 | |||
| 100 | $ 0.11 | |||
| 500 | $ 0.10 | |||
| 1000 | $ 0.08 | |||
| 2000 | $ 0.07 | |||
| Tape & Reel (TR) | 4000 | $ 0.07 | ||
| 8000 | $ 0.07 | |||
| 12000 | $ 0.06 | |||
| 28000 | $ 0.05 | |||
| 100000 | $ 0.05 | |||
Description
General part information
SML-LX0201 Series
Blue LED Indication - Discrete 2.6V 2-SMD, No Lead
