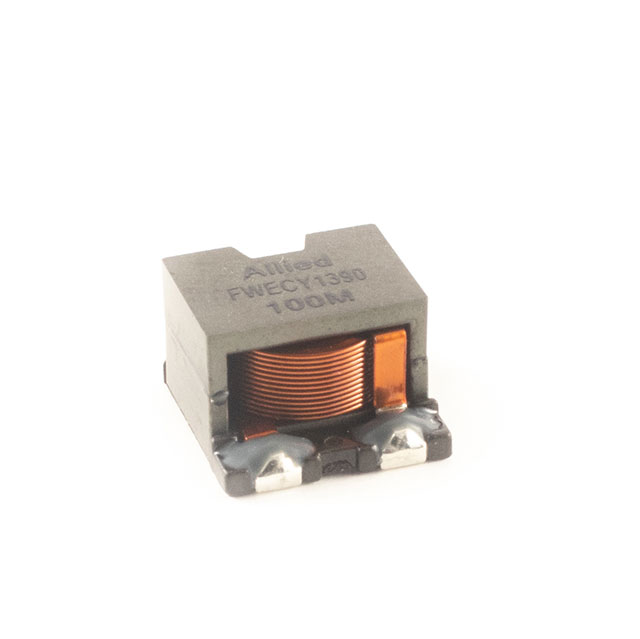

FWECY1390-100M
ActiveAllied Components International
10H 20% FLAT WIRE SMD POWER IN
FWECY1390-100M
ActiveAllied Components International
10H 20% FLAT WIRE SMD POWER IN
Description
General part information
FWECY1390-100M
10 µH Shielded Wirewound Inductor 9.2 A 15mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | FWECY1390-100M |
|---|---|
| Current - Saturation (Isat) | 12 A |
| Current Rating | 9.2 A |
| DC Resistance (DCR) (Max) | 15 mOhm |
| Frequency - Self Resonant | 26.9 MHz |
| Height - Seated (Max) | 0.354 in |
| Inductance | 10 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.512 in |
| Size / Dimension Width | 0.492 in |
| Tolerance | 20 % |
| Type | Wirewound |
