Description
General part information
09330242776

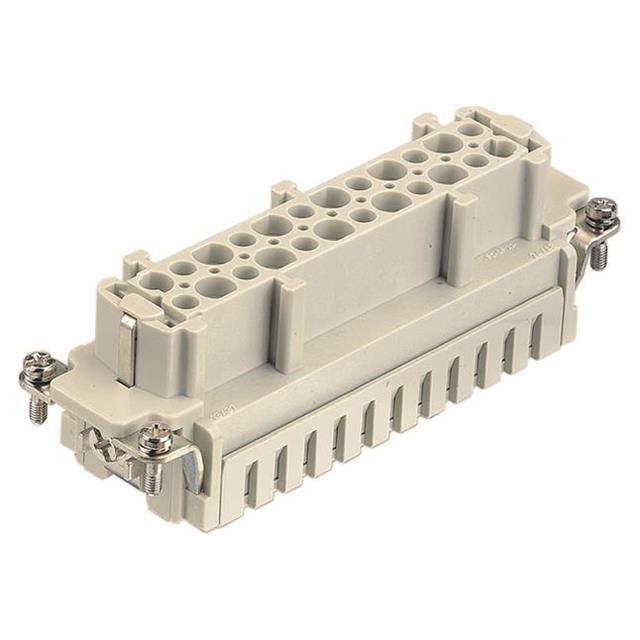

Female Insert Gray 24 Position Cage Clamp
Technical Specifications
Parameters and characteristics for this part
| Specification | 09330242776 |
|---|---|
| Color | Gray |
| Connector Type | Insert |
| Contact Finish | Silver |
| Contact Material | Copper Alloy |
| Current Rating | 16 A |
| Gender | Female |
| Housing Material | PC, Polycarbonate |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 24 pos |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Size | B24 |
| Termination Style | Cage Clamp |
| Voltage Rating | 500 V |
