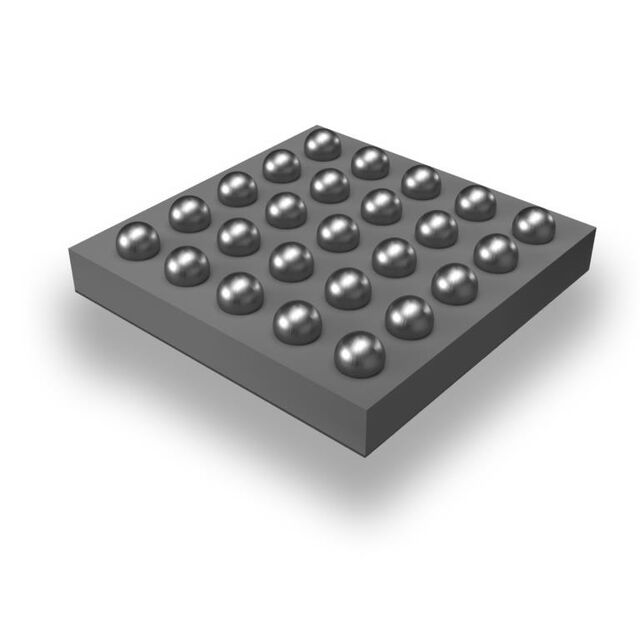

KTS1697AEOAB-TR
ActiveKinetic Technologies
7ARMS VBUS CURRENT-SINK PROTECTI
KTS1697AEOAB-TR
ActiveKinetic Technologies
7ARMS VBUS CURRENT-SINK PROTECTI
Description
General part information
KTS1697AEOAB-TR
Power Switch/Driver 1:1 7A 25-WLCSP (2.7x2.7)
Technical Specifications
Parameters and characteristics for this part
| Specification | KTS1697AEOAB-TR |
|---|---|
| Current - Output (Max) | 7 A |
| Fault Protection | Reverse Current, Current Limiting (Fixed), Over Temperature, Over Voltage, Short Circuit |
| Input Ratio | 1 |
| Input Type | Non-Inverting |
| Interface | On/Off |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output Configuration | High Side |
| Output Ratio | 1 |
| Package / Case | 25-WFBGA, WLCSP |
| Package Length | 2.7 mm |
| Package Name | 25-WLCSP |
| Package Width | 2.7 mm |
| Rds On (Typ) | 11 mOhm |
| Switch Type | General Purpose |
| Voltage - Load (Max) | 23 V |
| Voltage - Load (Min) | 3 V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Voltage - Supply (Vdd/Vcc) | Not Required |
