PBC03SACN

Active

Sullins Connector Solutions

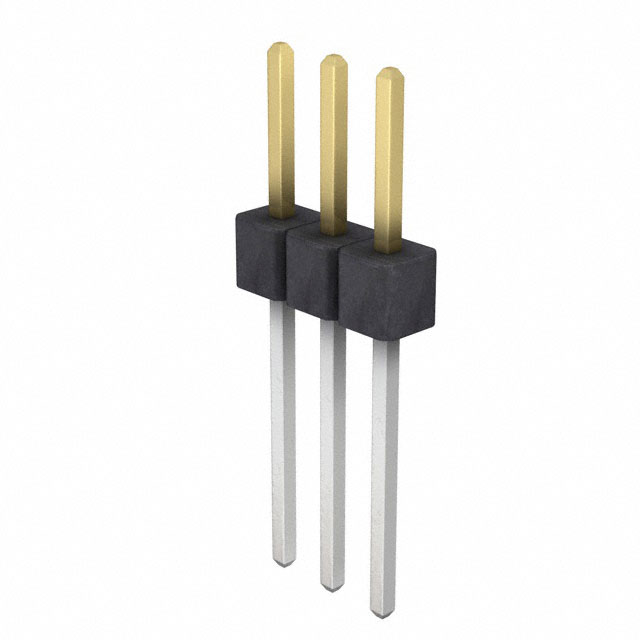

CONN HEADER VERT 3POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

PBC03SACN

Active

Sullins Connector Solutions

CONN HEADER VERT 3POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PBC03SACN

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post [x]	0.32 in
Contact Length - Post [x]	8.13 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Overall Contact Length	16.51 mm
Overall Contact Length	0.65 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PBC03 Series

Part	Contact Length - Post	Contact Length - Post	Insulation Material	Shrouding	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Connector Type	Contact Type	Number of Rows	Termination	Insulation Height	Insulation Height	Fastening Type	Current Rating (Amps)	Insulation Color	Overall Contact Length	Overall Contact Length	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Material Flammability Rating	Style	Number of Positions Loaded	Contact Finish - Mating	Contact Shape	Contact Length - Mating [x]	Contact Length - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Overall Contact Length	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating [x]
Sullins Connector Solutions PBC03SABN	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	Unshrouded	Through Hole	10 çin	0.25 çm	Phosphor Bronze	0.1 in	2.54 mm	Tin	Breakaway Header	Male Pin	1	Solder	0.1 in	2.54 mm	Push-Pull	3 A	Black	14.22 mm	0.56 in	2.54 µm	100 µin	UL94 V-0	Board to Board Cable	All	Gold	Square	0.23 in	5.84 mm	125 °C	-65 ░C
Sullins Connector Solutions PBC03SACN			Polybutylene Terephthalate (PBT)	Unshrouded	Through Hole	10 çin	0.25 çm	Phosphor Bronze	0.1 in	2.54 mm	Tin	Breakaway Header	Male Pin	1	Solder	0.1 in	2.54 mm	Push-Pull	3 A	Black	0.65 in		2.54 µm	100 µin	UL94 V-0	Board to Board Cable	All	Gold	Square	0.23 in	5.84 mm	125 °C	-65 ░C	16.51 mm	0.32 in	8.13 mm
Sullins Connector Solutions PBC03DACN			Polybutylene Terephthalate (PBT)	Unshrouded	Through Hole	10 çin	0.25 çm	Phosphor Bronze	0.1 in	2.54 mm	Tin	Breakaway Header	Male Pin	2	Solder	0.1 in	2.54 mm	Push-Pull	3 A	Black	0.65 in		2.54 µm	100 µin	UL94 V-0	Board to Board Cable	All	Gold	Square	0.23 in	5.84 mm	125 °C	-65 ░C	16.51 mm	0.32 in	8.13 mm	6	2.54 mm	0.1 in
Sullins Connector Solutions PBC03DFAN			Polybutylene Terephthalate (PBT)	Unshrouded	Through Hole	10 çin	0.25 çm	Phosphor Bronze	0.1 in	2.54 mm	Tin	Breakaway Header	Male Pin	2	Solder	0.1 in	2.54 mm	Push-Pull	3 A	Black	13.67 mm	0.538 "	2.54 µm	100 µin	UL94 V-0	Board to Board Cable	All	Gold	Square	0.318 "		125 °C	-65 ░C		0.12 in	3.05 mm	6	2.54 mm	0.1 in	8.08 mm
Sullins Connector Solutions PBC03DADN			Polybutylene Terephthalate (PBT)	Unshrouded	Through Hole	10 çin	0.25 çm	Phosphor Bronze	0.1 in	2.54 mm	Tin	Breakaway Header	Male Pin	2	Solder	0.1 in	2.54 mm	Push-Pull	3 A	Black	19.05 mm	0.75 in	2.54 µm	100 µin	UL94 V-0	Board to Board Cable	All	Gold	Square	0.23 in	5.84 mm	125 °C	-65 ░C		0.42 in	10.67 mm	6	2.54 mm	0.1 in
Sullins Connector Solutions PBC03SBDN			Polybutylene Terephthalate (PBT)	Unshrouded	Through Hole Right Angle	10 çin	0.25 çm	Phosphor Bronze	0.1 in	2.54 mm	Tin	Breakaway Header	Male Pin	1	Solder	0.14 in	3.56 mm	Push-Pull	3 A	Black			2.54 µm	100 µin	UL94 V-0	Board to Board Cable	All	Gold	Square	0.23 in	5.84 mm	125 °C	-65 ░C		0.4 in	10.16 mm
Sullins Connector Solutions PBC03SGAN	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT)	Unshrouded	Through Hole Right Angle	10 çin	0.25 çm	Phosphor Bronze	0.1 in	2.54 mm	Tin	Breakaway Header	Male Pin	1	Solder	0.14 in	3.56 mm	Push-Pull	3 A	Black			2.54 µm	100 µin	UL94 V-0	Board to Board Cable	All	Gold	Square	0.318 "		125 °C	-65 ░C							8.08 mm
Sullins Connector Solutions PBC03DBAN	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT)	Unshrouded	Through Hole Right Angle	10 çin	0.25 çm	Phosphor Bronze	0.1 in	2.54 mm	Tin	Breakaway Header	Male Pin	2	Solder	0.24 in	6.1 mm	Push-Pull	3 A	Black			2.54 µm	100 µin	UL94 V-0	Board to Board Cable	All	Gold	Square	0.23 in	5.84 mm	125 °C	-65 ░C				6	2.54 mm	0.1 in
Sullins Connector Solutions PBC03SFEN	0.52 "	13.21 mm	Polybutylene Terephthalate (PBT)	Unshrouded	Through Hole	10 çin	0.25 çm	Phosphor Bronze	0.1 in	2.54 mm	Tin	Breakaway Header	Male Pin	1	Solder	0.1 in	2.54 mm	Push-Pull	3 A	Black	23.83 mm	0.938 in	2.54 µm	100 µin	UL94 V-0	Board to Board Cable	All	Gold	Square	0.318 "		125 °C	-65 ░C							8.08 mm
Sullins Connector Solutions PBC03DBBN			Polybutylene Terephthalate (PBT)	Unshrouded	Through Hole Right Angle	10 çin	0.25 çm	Phosphor Bronze	0.1 in	2.54 mm	Tin	Breakaway Header	Male Pin	2	Solder	0.24 in	6.1 mm	Push-Pull	3 A	Black			2.54 µm	100 µin	UL94 V-0	Board to Board Cable	All	Gold	Square	0.23 in	5.84 mm	125 °C	-65 ░C		0.2 in	5.08 mm	6	2.54 mm	0.1 in
