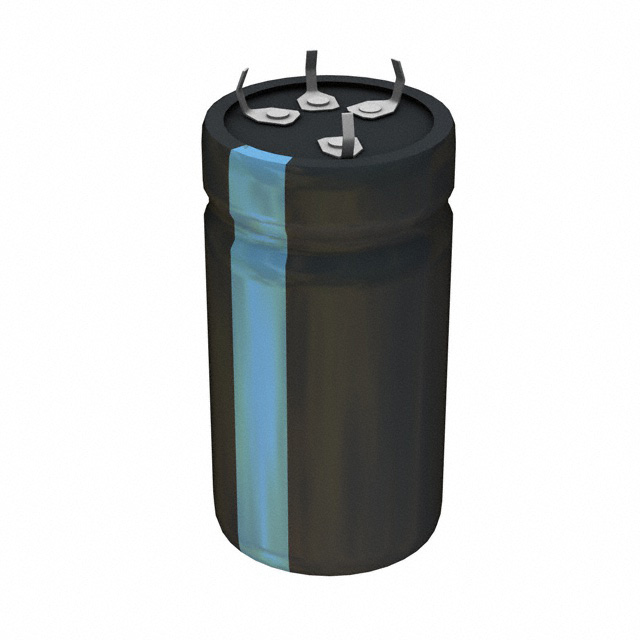

381LX821M400A062
ActiveCornell Dubilier Knowles
CAP ALUM 820UF 20% 400V SNAP TH
381LX821M400A062
ActiveCornell Dubilier Knowles
CAP ALUM 820UF 20% 400V SNAP TH
Description
General part information
381LX821M400A062
820 µF 400 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | 381LX821M400A062 |
|---|---|
| Applications | General Purpose |
| Capacitance | 820 µF |
| Height - Seated (Max) | 2.559 in |
| Lead Spacing | 0.394 in |
| Lifetime | 3000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Can - Snap-In, Radial |
| Polarization | Polar |
| Ripple Current | 2.44 A, 3.42 A |
| Size / Dimension Diameter | 1.378 in |
| Tolerance | 20 % |
| Voltage - Rated | 400 V |
