DYL060-7

Active

Tri-Mag, LLC

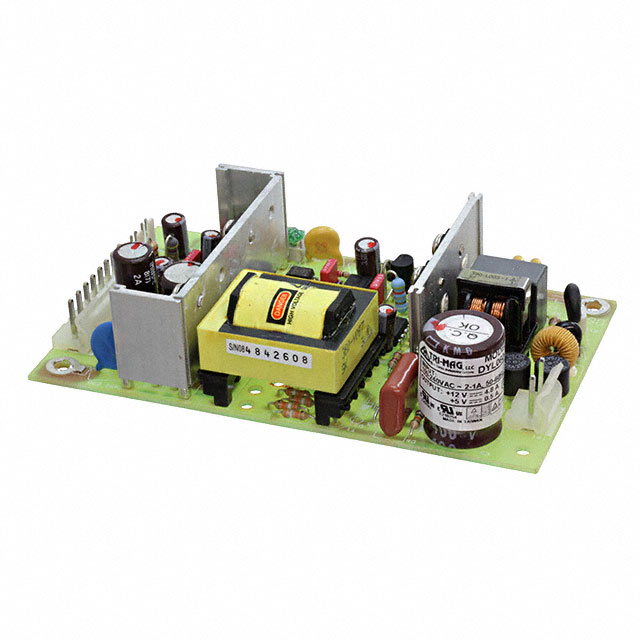

AC/DC CONVERTER 12V 5V 60W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DYL060-7

Active

Tri-Mag, LLC

AC/DC CONVERTER 12V 5V 60W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	DYL060-7	DYL060 Series

Applications	ITE (Commercial)	ITE (Commercial)
Current - Output 1	4.8 A	1.25 - 4.8 A
Current - Output 2	500 mA	3 - 500 mA
Current - Output 3	-	300 mA
Current - Output 4	-	300 mA
Features	Universal Input	Universal Input
Minimum Load Required	False	False
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	2	1 - 4
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	0 °C	0 °C
Size / Dimension [x]	5 in	5 in
Size / Dimension [x]	127 mm	127 mm
Size / Dimension [y]	76.2 mm	76.2 mm
Size / Dimension [y]	3 "	3 "
Size / Dimension [z]	30 mm	30 mm
Size / Dimension [z]	1.18 in	1.18 in
Type	Open Frame	Open Frame
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Output 1	12 V	5 - 48 V
Voltage - Output 2	5 V	5 - 12 V
Voltage - Output 3	-	-12 V
Voltage - Output 4	-	-5 V

DYL060 Series

AC/DC CONVERTER 15V 5V 60W

Part	Type	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output 2	Current - Output 2	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Current - Output 1	Applications	Mounting Type	Operating Temperature [Max]	Features	Number of Outputs	Voltage - Output 4	Current - Output 3	Current - Output 4	Voltage - Output 3
Tri-Mag, LLC DYL060-8	Open Frame	90 VAC	264 VAC	5 V	500 mA	15 V	5 in	127 mm	30 mm	76.2 mm	3 "	1.18 in	3.8 A	ITE (Commercial)	Chassis Mount	70 °C	Universal Input	2
Tri-Mag, LLC DYL060-01-1	Open Frame	90 VAC	264 VAC	12 V	3 A	5 V	5 in	127 mm	30 mm	76.2 mm	3 "	1.18 in	3 A	ITE (Commercial)	Chassis Mount	70 °C	Universal Input	4	-5 V	300 mA	300 mA	-12 V
Tri-Mag, LLC DYL060-1	Open Frame	90 VAC	264 VAC	12 V	3 A	5 V	5 in	127 mm	30 mm	76.2 mm	3 "	1.18 in	3 A	ITE (Commercial)	Chassis Mount	70 °C	Universal Input	3		300 mA		-12 V
Tri-Mag, LLC DYL060-9-1	Open Frame	90 VAC	264 VAC			24 V	5 in	127 mm	30 mm	76.2 mm	3 "	1.18 in	2.7 A	ITE (Commercial)	Chassis Mount	70 °C	Universal Input	1
Tri-Mag, LLC DYL060-9	Open Frame	90 VAC	264 VAC	5 V	500 mA	24 V	5 in	127 mm	30 mm	76.2 mm	3 "	1.18 in	2.4 A	ITE (Commercial)	Chassis Mount	70 °C	Universal Input	2
Tri-Mag, LLC DYL060-3	Open Frame	90 VAC	264 VAC	12 V	3.5 A	5 V	5 in	127 mm	30 mm	76.2 mm	3 "	1.18 in	3 A	ITE (Commercial)	Chassis Mount	70 °C	Universal Input	2
Tri-Mag, LLC DYL060-7	Open Frame	90 VAC	264 VAC	5 V	500 mA	12 V	5 in	127 mm	30 mm	76.2 mm	3 "	1.18 in	4.8 A	ITE (Commercial)	Chassis Mount	70 °C	Universal Input	2
Tri-Mag, LLC DYL060-14	Open Frame	90 VAC	264 VAC			48 V	5 in	127 mm	30 mm	76.2 mm	3 "	1.18 in	1.25 A	ITE (Commercial)	Chassis Mount	70 °C	Universal Input	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	5	$ 50.13

Description

General part information

DYL060 Series

Open Frame AC DC Converters 2 Output 12V 5V 90 ~ 264 VAC Input
