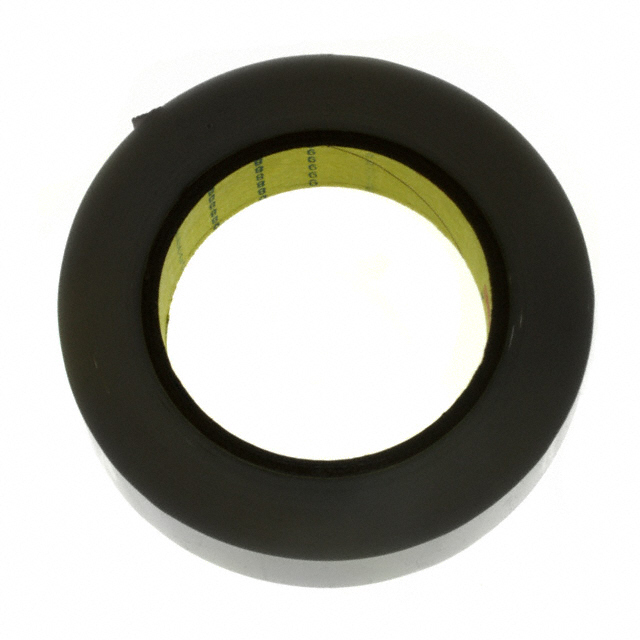

9885 1 IN X 36 YD

Active

3M (TC)

THERM PAD 32.92M X 25.4MM W/ADH

Search across all available documentation for this part.

Active

3M (TC)

THERM PAD 32.92M X 25.4MM W/ADH

Technical Specifications

Parameters and characteristics for this part

Specification	9885 1 IN X 36 YD

Adhesive	Adhesive - Both Sides
Backing, Carrier	Polyester
Color	Gray
Outline [x]	32.92 m
Outline [y]	25.4 mm
Shape	Rectangular
Shelf Life	24 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature	72 °F
Storage/Refrigeration Temperature	22 °C
Thermal Conductivity	0.6 W/m-K
Thermal Resistivity	0.5 °C/W
Thickness [x]	0.005 in
Thickness [x]	0.127 mm
Type	Transfer Tape, Roll
Usage	Thermally Conductive

Part	Thickness [x]	Thickness [x]	Shelf Life	Backing, Carrier	Usage	Shelf Life Start	Shape	Type	Color	Adhesive	Thermal Resistivity	Thermal Conductivity	Outline [y]	Outline [x]	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature
3M (TC) 9885 1 IN X 36 YD	0.005 in	0.127 mm	24 Months	Polyester	Thermally Conductive	Date of Manufacture	Rectangular	Transfer Tape Roll	Gray	Adhesive - Both Sides	0.5 °C/W	0.6 W/m-K	25.4 mm	32.92 m	72 °F	22 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Thermal Pad Gray 32.92m x 25.40mm Rectangular Adhesive - Both Sides
