2943767

Active

Phoenix Contact

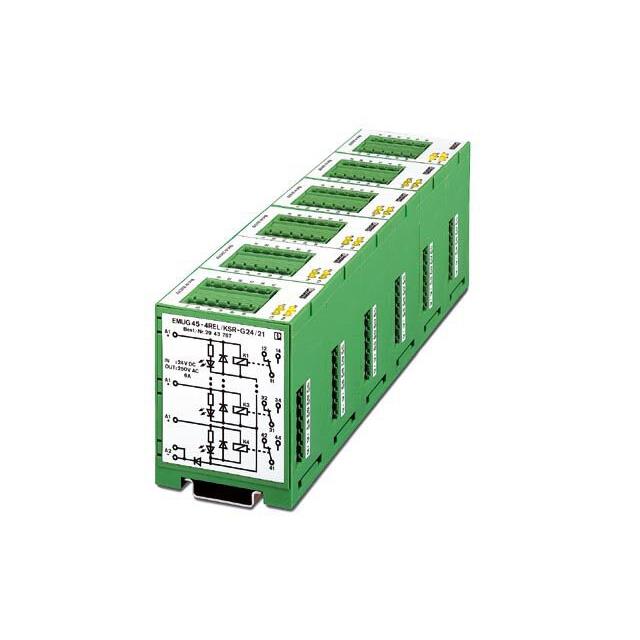

RELAY GEN PURPOSE 4PDT 6A 24V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE 4PDT 6A 24V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2943767	29437 Series

Coil Current	21 mA	12 - 21 mA
Coil Type	Non Latching	Non Latching
Coil Voltage	24 VDC	24 VDC
Contact Form	4PDT (4 Form C)	4PDT (4 Form C), 8PST-NO
Contact Form	-	8 Form A
Contact Material	Silver Nickel (AgNi)	Silver Nickel (AgNi), Silver Cadmium Oxide (AgCdO)
Contact Rating (Current)	6 A	6 A
Features	Socket Included	Socket Included, Diode
Mounting Type	DIN Rail	DIN Rail
Operate Time	7 ms	6 - 7 ms
Operating Temperature [Max]	55 °C	55 °C
Operating Temperature [Min]	-20 C	-20 C
Relay Type	General Purpose	General Purpose
Release Time	11 ms	10 - 11 ms
Switching Voltage	250 VAC, 250 VDC	250 VAC

RELAY GEN PURPOSE 4PDT 6A 24V

Part	Contact Rating (Current)	Mounting Type	Switching Voltage	Coil Voltage	Operate Time	Features	Coil Current	Release Time	Operating Temperature [Max]	Operating Temperature [Min]	Coil Type	Contact Form	Relay Type	Contact Material	Contact Form
Phoenix Contact 2943767	6 A	DIN Rail	250 VAC, 250 VDC	24 VDC	7 ms	Socket Included	21 mA	11 ms	55 °C	-20 C	Non Latching	4PDT (4 Form C)	General Purpose	Silver Nickel (AgNi)
Phoenix Contact 2943770	6 A	DIN Rail	250 VAC, 250 VDC	24 VDC	6 ms	Diode, Socket Included	12 mA	10 ms	55 °C	-20 C	Non Latching	8PST-NO	General Purpose	Silver Cadmium Oxide (AgCdO)	8 Form A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 257.72

General part information

General Purpose Relay 4PDT (4 Form C) 24VDC Coil DIN Rail
