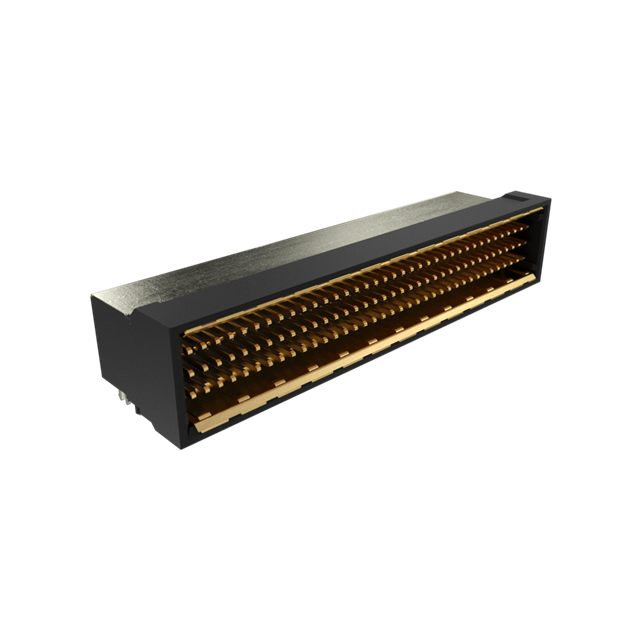

10160298-1111000LF
ActiveAmphenol ICC (FCI)
BERGSTAK SECURE CONNECTOR, RIGHT
Deep-Dive with AI
Search across all available documentation for this part.
10160298-1111000LF
ActiveAmphenol ICC (FCI)
BERGSTAK SECURE CONNECTOR, RIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10160298-1111000LF |
|---|---|
| Connector Type | Male Pins, Array |
| Contact Finish | GXT™, Gold or Gold |
| Contact Finish Thickness | 8 çin |
| Contact Finish Thickness | 0.203 çm |
| Features | Friction Lock |
| Height Above Board [z] | 7.95 mm |
| Height Above Board [z] | 0.313 in |
| Mated Stacking Heights | 7.95 mm |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 111 |
| Number of Rows | 3 |
| Pitch [x] | 0.039 in |
| Pitch [x] | 1 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 10.41 | |
| 10 | $ 7.99 | |||
| 25 | $ 7.21 | |||
| 50 | $ 6.69 | |||
| 100 | $ 6.21 | |||
| Digi-Reel® | 1 | $ 10.41 | ||
| 10 | $ 7.99 | |||
| 25 | $ 7.21 | |||
| 50 | $ 6.69 | |||
| 100 | $ 6.21 | |||
| Tape & Reel (TR) | 300 | $ 5.55 | ||
| 600 | $ 5.37 | |||
| 900 | $ 4.99 | |||
| 1500 | $ 4.75 | |||
| 2100 | $ 4.67 | |||
Description
General part information
10160298 Series
111 Position Connector Array, Male Pins Surface Mount, Right Angle Gold or Gold, GXT™
