UTS612E4S

Active

Souriau-Sunbank by Eaton

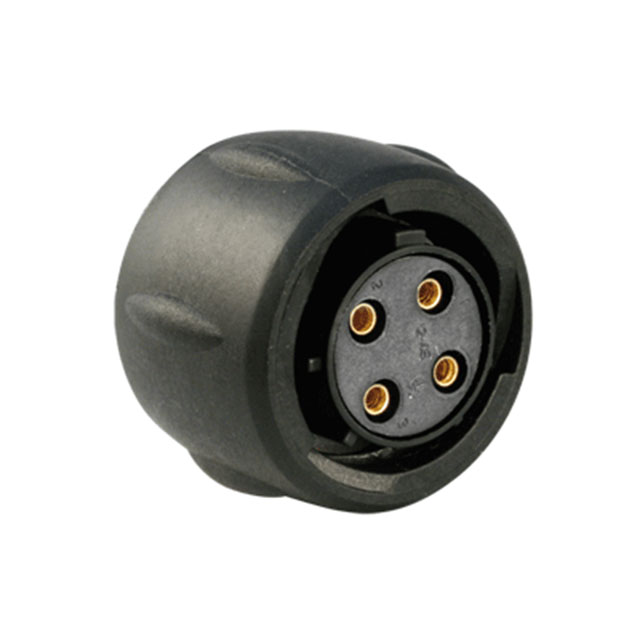

CONN PLUG FMALE 4P GOLD SLDR CUP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 21.43

Description

General part information

UTS61 Series

4 (3 + PE) Position Circular Connector Plug, Female Sockets Solder Cup

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UTS612E4S	UTS61 Series

Accessory Type	-	Cap (Cover), Sealing, Coding Ring, Sealing Cap
Applications	Instrumentation, Energy, Lighting, Telecommunications	Instrumentation, Energy, Lighting, Telecommunications
Color	Black	Black, Green, Red, Yellow
Connector Type	Female Sockets, Plug	Plug Housing, Plug, Male Pins, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	16 Áin	16 Áin
Contact Finish Thickness - Mating	0.41 Ám	0.41 Ám
Contact Material	Brass	Brass, Copper Alloy
Contact Shape	-	Circular
Contact Size	-	8 - 20
Contact Size	-	20 (3), 16 (3), 12 (2), 20 (2), 16 (4), 12 (4)
Contact Type	-	Crimp
Current Rating (Amps)	10 A	4 - 13 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Coupling Nut, UV Resistant	Coupling Nut, UV Resistant, Waterproof, Dust Tight, Contains Strap with Ring
For Use With/Related Products	-	Trim Trio® UTS Plugs, UTS Housings
Housing Color	-	Black
Ingress Protection	IP68, IP69K	IP69K, IP67, IP68
Insert Material	Polychloroprene	Polychloroprene
Material	-	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	-	Contacts Not Included
Number of Positions	4	2 - 23
Number of Positions	-	3
Number of Positions	-	1
Number of Positions	-	2
Number of Positions	-	2
Number of Positions	-	1
Number of Positions	-	6
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	N	N, X, Z, W, Y
Primary Material	Plastic	Plastic
Shell Size - Insert	12-4	14-2, 12-3, 14-12, 10-3, 12-4, 10-6, 12-8, 10-3W3, 18-3, 14-5, 12-2, 10-4, 10-2W2, 14-8, 10-7
Shell Size - Insert	-	14 - 18
Shell Size - Insert	-	19 - 23
Shell Size - Insert	-	10 - 18
Shell Size - Insert	-	7 - 18
Shell Size - Insert	-	14 - 98
Shielding	Unshielded	Unshielded
Termination	-	Screw
Type	-	For Male Pins, For Female Sockets
Voltage Rating	500 V	250 - 650 V

UTS61 Series

CONN PLUG HSG MALE 3POS INLINE

...

Part	Ingress Protection	Mounting Type	Fastening Type	Housing Color	Contact Type	Contact Shape	Material Flammability Rating	Orientation	Note	Shielding	Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Connector Type	Contact Size	Voltage Rating	Color	Insert Material	Contact Finish - Mating	Primary Material	Applications	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Current Rating (Amps)	Shell Size - Insert [Min] [custom]	Shell Size - Insert [Max] [custom]	Number of Positions	Shell Size - Insert	Accessory Type	Material	For Use With/Related Products	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Number of Positions [custom]
Souriau-Sunbank by Eaton UTS6142G1P	IP67, IP69K	Free Hanging (In-Line)	Bayonet Lock	Black	Crimp	Circular	UL94 V-0	N	Contacts Not Included	Unshielded	For Male Pins	Coupling Nut	-40 °C	105 ░C	14-2	3	1	2	Plug Housing	8
Souriau-Sunbank by Eaton UTS612E3P	IP68, IP69K	Free Hanging (In-Line)	Bayonet Lock				UL94 V-0	N		Unshielded		Coupling Nut, UV Resistant	-40 °C	105 ░C	12-3				Male Pins, Plug		600 V	Black	Polychloroprene	Gold	Plastic	Energy, Instrumentation, Lighting, Telecommunications	16 Áin	0.41 Ám	Brass	13 A
Souriau-Sunbank by Eaton UTS61823S	IP67, IP69K	Free Hanging (In-Line)	Bayonet Lock	Black	Crimp	Circular	UL94 V-0	N	Contacts Not Included	Unshielded	For Female Sockets	Coupling Nut	-40 °C	105 ░C					Plug Housing	16											18	23	23
Souriau-Sunbank by Eaton UTS612DCG												Contains Strap with Ring, Dust Tight, Waterproof										Black												12	Cap (Cover), Sealing	Thermoplastic	Trim Trio® UTS Plugs
Souriau-Sunbank by Eaton UTS612E10P	IP68, IP69K	Free Hanging (In-Line)	Bayonet Lock				UL94 V-0	N		Unshielded		Coupling Nut, UV Resistant	-40 °C	105 ░C					Male Pins, Plug		250 VDC	Black	Polychloroprene	Gold	Plastic	Energy, Instrumentation, Lighting, Telecommunications	16 Áin	0.41 Ám	Brass	4.5 A			10
Souriau-Sunbank by Eaton UTS614E12SX	IP68, IP69K	Free Hanging (In-Line)	Bayonet Lock				UL94 V-0	X		Unshielded		Coupling Nut, UV Resistant	-40 °C	105 ░C	14-12				Female Sockets, Plug		250 VDC	Black	Polychloroprene	Gold	Plastic	Energy, Instrumentation, Lighting, Telecommunications	16 Áin	0.41 Ám	Brass	4.5 A			12
Souriau-Sunbank by Eaton UTS614E18S	IP68, IP69K	Free Hanging (In-Line)	Bayonet Lock				UL94 V-0	N		Unshielded		Coupling Nut, UV Resistant	-40 °C	105 ░C					Female Sockets, Plug		250 VDC	Black	Polychloroprene	Gold	Plastic	Energy, Instrumentation, Lighting, Telecommunications	16 Áin	0.41 Ám	Brass	4 A			18					14	18
Souriau-Sunbank by Eaton UTS6103P	IP67, IP69K	Free Hanging (In-Line)	Bayonet Lock	Black	Crimp	Circular	UL94 V-0	N	Contacts Not Included	Unshielded	For Male Pins	Coupling Nut	-40 °C	105 ░C	10-3	3	1		Plug Housing	16																				2
Souriau-Sunbank by Eaton UTS6124P	IP67, IP69K	Free Hanging (In-Line)	Bayonet Lock	Black	Crimp	Circular	UL94 V-0	N	Contacts Not Included	Unshielded	For Male Pins	Coupling Nut	-40 °C	105 ░C	12-4				Plug Housing	16													4
Souriau-Sunbank by Eaton UTS6142G1S	IP67, IP69K	Free Hanging (In-Line)	Bayonet Lock	Black	Crimp	Circular	UL94 V-0	N	Contacts Not Included	Unshielded	For Female Sockets	Coupling Nut	-40 °C	105 ░C	14-2	3	1	2	Plug Housing	8
