06020SA-12T-EA-00
ActiveNMB TECHNOLOGIES

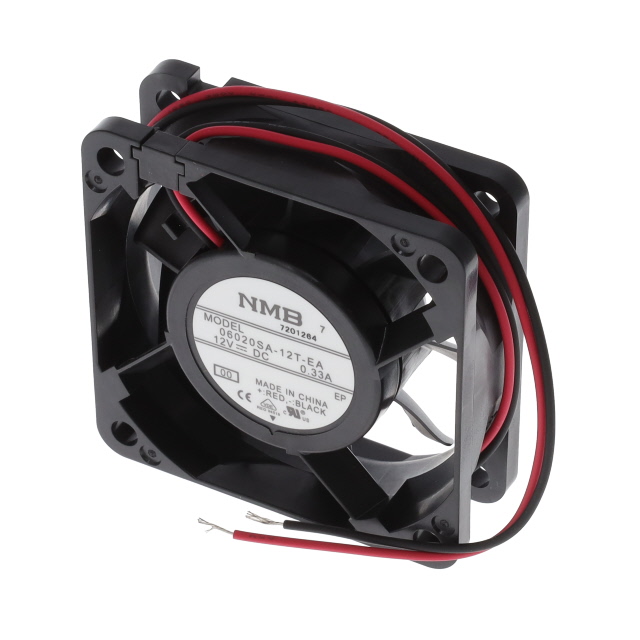

FAN AXIAL 60X20MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
06020SA-12T-EA-00
ActiveNMB TECHNOLOGIES
FAN AXIAL 60X20MM 12VDC WIRE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 06020SA-12T-EA-00 |
|---|---|
| Air Flow | 30.4 CFM |
| Air Flow | 0.851 mł/min |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.24 A |
| Fan Type | Tubeaxial |
| Features | Auto Restart |
| Lifetime @ Temp. | 40000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 42.5 dB |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 2.88 W |
| RPM | 6400 RPM |
| Size / Dimension [x] | 60 mm |
| Size / Dimension [y] | 60 mm |
| Static Pressure | 0.44 in H2O |
| Static Pressure | 109.6 Pa |
| Termination | 2 Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 13.8 VDC |
| Voltage Range [Min] | 6 VDC |
| Width [y] | 20 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 10.23 | |
| 10 | $ 9.12 | |||
| 25 | $ 8.71 | |||
| 50 | $ 8.42 | |||
| 120 | $ 8.06 | |||
| 360 | $ 7.63 | |||
| 600 | $ 7.43 | |||
Description
General part information
06020SA-12T-EA-00
Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Ball 30.4 CFM (0.851m³/min) 2 Wire Leads
