Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | B-435-1 | B-435 Series |
|---|---|---|
| Diameter - Inside | 0.5 in | 0.5 in |
| Diameter - Inside | 12.7 mm | 12.7 mm |
| Diameter - Inside [diameter] | 0.5 in | 0.5 in |
| Diameter - Outside [diameter] | 25.4 mm | 25.4 mm |
| Diameter - Outside [diameter] | 1 in | 1 in |
| Length - Below Head | 13.82 mm | 13.82 mm |
| Length - Below Head | 0.544 in | 0.544 in |
| Material | Thermoplastic | Thermoplastic |
| Thickness - Overall | 26.92 mm | 26.92 mm |
| Thickness - Overall [z] | 1.06 in | 1.06 in |

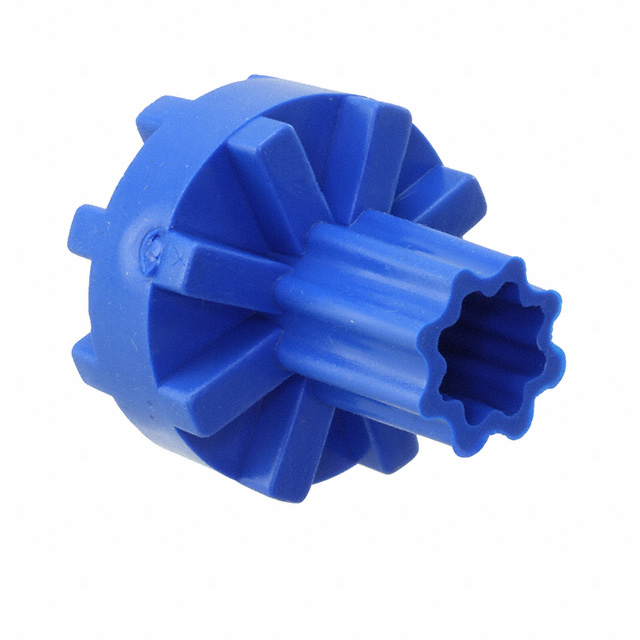

B-435 Series
BUSHING 1/2" THERMOPLASTIC
| Part | Material | Diameter - Outside [diameter] | Diameter - Outside [diameter] | Thickness - Overall [z] | Thickness - Overall | Diameter - Inside [diameter] | Diameter - Inside | Diameter - Inside | Length - Below Head | Length - Below Head |
|---|---|---|---|---|---|---|---|---|---|---|
Aearo Technologies LLC, a 3M company B-435-V2590 | Thermoplastic | 25.4 mm | 1 in | 1.06 in | 26.92 mm | 0.5 in | 0.5 in | 12.7 mm | 13.82 mm | 0.544 in |
Aearo Technologies LLC, a 3M company B-435-V2325 | Thermoplastic | 25.4 mm | 1 in | 1.06 in | 26.92 mm | 0.5 in | 0.5 in | 12.7 mm | 13.82 mm | 0.544 in |
Aearo Technologies LLC, a 3M company B-435-1 | Thermoplastic | 25.4 mm | 1 in | 1.06 in | 26.92 mm | 0.5 in | 0.5 in | 12.7 mm | 13.82 mm | 0.544 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 1.98 | |
| 10 | $ 1.73 | |||
| 25 | $ 1.65 | |||
| 50 | $ 1.62 | |||
| 200 | $ 1.54 | |||
| 400 | $ 1.40 | |||
| 600 | $ 1.29 | |||
| 1000 | $ 1.10 | |||
| 2600 | $ 1.03 | |||
Description
General part information
B-435 Series
Shoulder Washer 1.060" (26.92mm) Thick Thermoplastic
Documents
Technical documentation and resources
