735
ActiveHammond Manufacturing

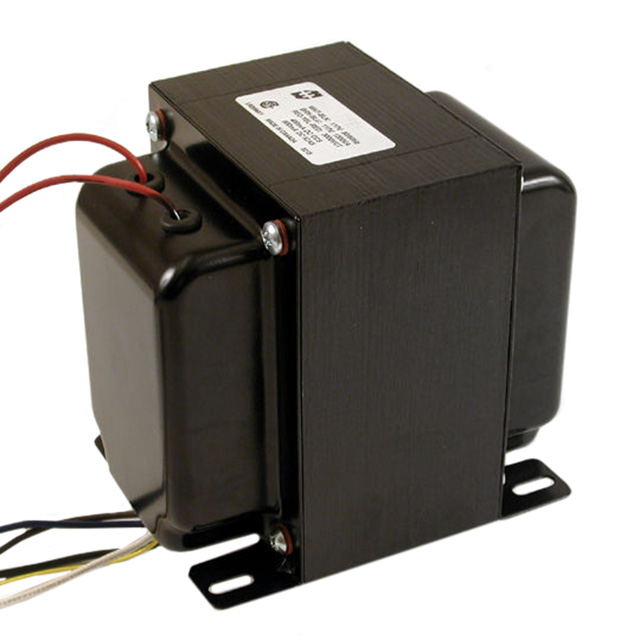

PWR XFMR LAMINATED 735VA CHAS MT
735
ActiveHammond Manufacturing
PWR XFMR LAMINATED 735VA CHAS MT
Description
General part information
735
PWR XFMR LAMINATED 735VA CHAS MT
Technical Specifications
Parameters and characteristics for this part
| Specification | 735 |
|---|---|
| Center Tap | Yes |
| Current - Output (Max) | 250 mA |
| Height - Seated (Max) | 165.1 mm |
| Mounting Type | Chassis Mount |
| Power - Max | 735 VA |
| Primary Winding(s) | Single |
| Secondary Winding(s) | Single |
| Size / Dimension Length | 5 in |
| Size / Dimension Width | 152.4 mm |
| Termination Style | Wire Leads |
| Type | Laminated Core |
| Voltage - Primary | 115 V |
| Voltage - Secondary (Full Load) | 3000 V |
| Weight | 24 lbs |
