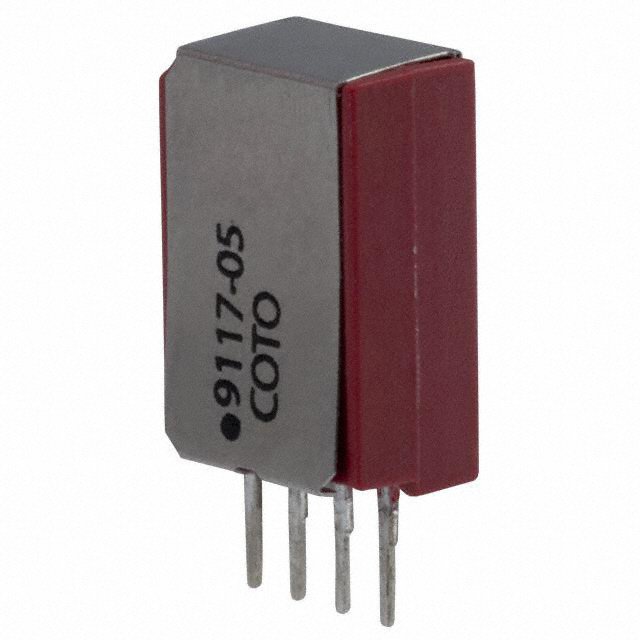

9117-05-10
ActiveCoto Technology
RELAY REED SPST 250MA 5V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
9117-05-10
ActiveCoto Technology
RELAY REED SPST 250MA 5V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 9117-05-10 |
|---|---|
| Coil Resistance | 400 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 5 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 250 mA |
| Features | EMI Shielded |
| Mounting Type | Through Hole |
| Must Operate Voltage | 3.75 VDC |
| Must Release Voltage | 0.5 VDC |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Release Time | 0.1 ms |
| Switching Voltage | 100 VAC, 100 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 17.16 | |
| 10 | $ 15.25 | |||
| 25 | $ 14.49 | |||
| 58 | $ 13.73 | |||
| 116 | $ 12.96 | |||
| 290 | $ 11.82 | |||
| 522 | $ 11.06 | |||
Description
General part information
9117-05-10
RELAY REED SPST 250MA 5V
