794815-1
ActiveTE Connectivity AMP Connectors

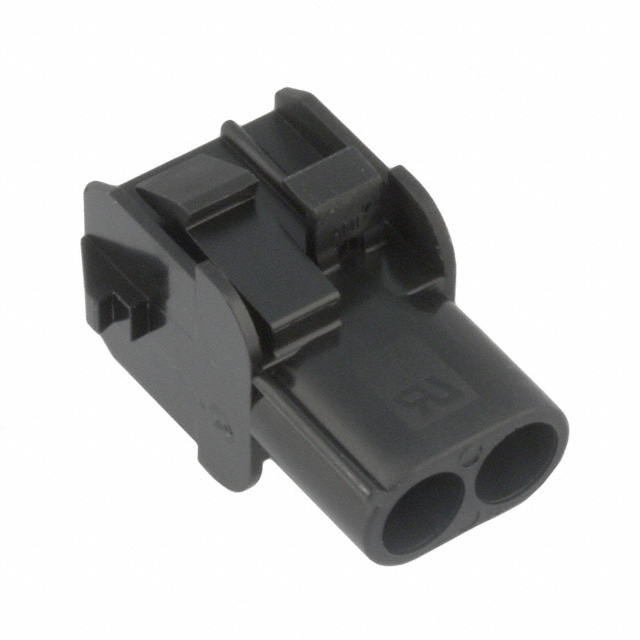

CONN PLUG HSG 2POS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
794815-1
ActiveTE Connectivity AMP Connectors
CONN PLUG HSG 2POS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 794815-1 | 794815 Series |
|---|---|---|
| Color | Black | Black |
| Connector Type | Plug | Plug |
| Contact Termination | Crimp | Crimp |
| Contact Type | Male or Female | Male or Female |
| Fastening Type | Latch Lock | Latch Lock |
| Insulation Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 2 | 2 |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
794815 Series
CONN PLUG HSG 2POS
| Part | Insulation Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Termination | Note | Fastening Type | Contact Type | Connector Type | Color | Number of Rows | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 794815-1 | Nylon, Polyamide (PA) | -55 °C | 125 °C | Crimp | Contacts Not Included | Latch Lock | Male or Female | Plug | Black | 2 | 2 |
TE Connectivity AMP Connectors 8-794815-1 | Crimp | Contacts Not Included | Latch Lock | Male or Female | Plug | Black | 2 | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.27 | |
| 10 | $ 0.24 | |||
| 25 | $ 0.24 | |||
| 50 | $ 0.23 | |||
| 100 | $ 0.20 | |||
| 250 | $ 0.18 | |||
| 500 | $ 0.18 | |||
Description
General part information
794815 Series
2 Rectangular Connectors - Housings Plug Black
