EPG.1B.308.HLN
ActiveLEMO

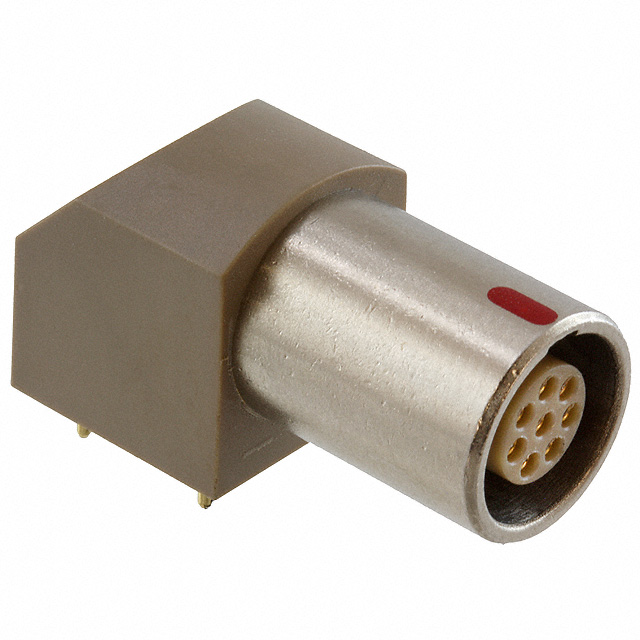

CONN RCPT FMALE 8POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EPG.1B.308.HLN
ActiveLEMO
CONN RCPT FMALE 8POS GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EPG.1B.308.HLN | EPG.1B Series |
|---|---|---|
| Color | Brown, Silver | Brown, Silver |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 59 Áin | 59 Áin |
| Contact Finish Thickness - Mating | 1.5 Ám | 1.5 Ám |
| Contact Material | Bronze | Bronze |
| Current Rating (Amps) | 2 A | 1.5 - 4.5 A |
| Fastening Type | Push-Pull | Push-Pull |
| Features | Ground | Ground |
| Ingress Protection | IP50 | IP50 |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Number of Positions | 8 | 2 - 10 |
| Operating Temperature [Max] | 250 °C | 250 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | G | G |
| Primary Material | Metal | Metal |
| Shell Finish | Nickel | Nickel |
| Shell Material | Brass and Polyphenylene Sulfide (PPS) | Brass and Polyphenylene Sulfide (PPS) |
| Shell Size - Insert | 308 | 302 - 310 |
| Shielding | Shielded | Shielded |
| Termination | Solder | Solder |
EPG.1B Series
CONN RCPT FMALE 4POS GOLD SOLDER
| Part | Contact Finish - Mating | Material Flammability Rating | Primary Material | Color | Orientation | Shell Finish | Ingress Protection | Termination | Mounting Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions | Shielding | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Contact Material | Features | Insert Material | Current Rating (Amps) | Shell Size - Insert | Shell Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO EPG.1B.304.HLN | Gold | UL94 V-0 | Metal | Brown, Silver | G | Nickel | IP50 | Solder | Through Hole, Right Angle | 59 Áin | 1.5 Ám | 4 | Shielded | Push-Pull | -55 °C | 250 °C | Receptacle, Female Sockets | Bronze | Ground | Polyetheretherketone (PEEK) | 4.5 A | 304 | Brass and Polyphenylene Sulfide (PPS) |
LEMO EPG.1B.308.HLN | Gold | UL94 V-0 | Metal | Brown, Silver | G | Nickel | IP50 | Solder | Through Hole, Right Angle | 59 Áin | 1.5 Ám | 8 | Shielded | Push-Pull | -55 °C | 250 °C | Receptacle, Female Sockets | Bronze | Ground | Polyetheretherketone (PEEK) | 2 A | 308 | Brass and Polyphenylene Sulfide (PPS) |
LEMO EPG.1B.306.HLNS | Gold | UL94 V-0 | Metal | Brown, Silver | G | Nickel | IP50 | Solder | Through Hole, Right Angle | 59 Áin | 1.5 Ám | 6 | Shielded | Push-Pull | -55 °C | 250 °C | Receptacle, Female Sockets | Bronze | Polyetheretherketone (PEEK) | 4.5 A | 306 | Brass and Polyphenylene Sulfide (PPS) | |
LEMO EPG.1B.308.HLNS | Gold | UL94 V-0 | Metal | Brown, Silver | G | Nickel | IP50 | Solder | Through Hole, Right Angle | 59 Áin | 1.5 Ám | 8 | Shielded | Push-Pull | -55 °C | 250 °C | Receptacle, Female Sockets | Bronze | Polyetheretherketone (PEEK) | 2 A | 308 | Brass and Polyphenylene Sulfide (PPS) | |
LEMO EPG.1B.302.HLN | Gold | UL94 V-0 | Metal | Brown, Silver | G | Nickel | IP50 | Solder | Through Hole, Right Angle | 59 Áin | 1.5 Ám | 2 | Shielded | Push-Pull | -55 °C | 250 °C | Receptacle, Female Sockets | Bronze | Ground | Polyetheretherketone (PEEK) | 4.5 A | 302 | Brass and Polyphenylene Sulfide (PPS) |
LEMO EPG.1B.305.HLN | Gold | UL94 V-0 | Metal | Brown, Silver | G | Nickel | IP50 | Solder | Through Hole, Right Angle | 59 Áin | 1.5 Ám | Shielded | Push-Pull | -55 °C | 250 °C | Receptacle, Female Sockets | Bronze | Ground | Polyetheretherketone (PEEK) | 4.5 A | 305 | Brass and Polyphenylene Sulfide (PPS) | |
LEMO EPG.1B.310.HLNS | Gold | UL94 V-0 | Metal | Brown, Silver | G | Nickel | IP50 | Solder | Through Hole, Right Angle | 59 Áin | 1.5 Ám | 10 | Shielded | Push-Pull | -55 °C | 250 °C | Receptacle, Female Sockets | Bronze | Polyetheretherketone (PEEK) | 1.5 A | 310 | Brass and Polyphenylene Sulfide (PPS) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 76.23 | |
| 10 | $ 64.80 | |||
| 25 | $ 60.74 | |||
| 50 | $ 57.85 | |||
| 100 | $ 55.09 | |||
Description
General part information
EPG.1B Series
8 Position Circular Connector Receptacle, Female Sockets Solder
