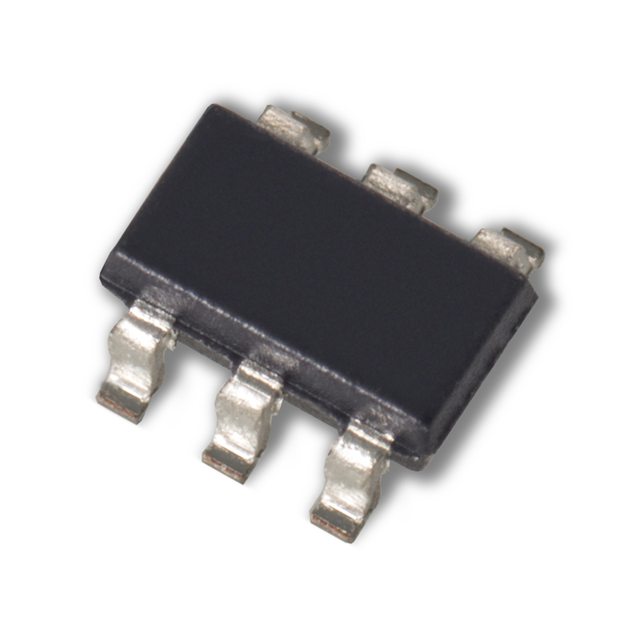

LS351 SOT-23 6L

Obsolete

Linear Integrated Systems, Inc.

TIGHTLY MATCHED, MONOLITHIC DUAL

Search across all available documentation for this part.

Obsolete

Linear Integrated Systems, Inc.

TIGHTLY MATCHED, MONOLITHIC DUAL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LS351 SOT-23 6L	LS351 Series

Current - Collector (Ic) (Max) [Max]	10 mA	10 mA
Current - Collector Cutoff (Max) [Max]	200 pA	200 pA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	150	150
Frequency - Transition	200 MHz	200 MHz
Mounting Type	Surface Mount	Surface Mount, Through Hole
Operating Temperature	150 °C	150 °C
Package / Case	SOT-23-6	SOT-23-6, TO-78-6 Metal Can, 8-SOIC
Package / Case	-	3.9 mm
Package / Case	-	0.154 in
Power - Max [Max]	500 mW	500 mW
Supplier Device Package	SOT-23-6	SOT-23-6, TO-78-6, 8-SOIC
Transistor Type	2 PNP (Dual)	2 PNP (Dual)
Vce Saturation (Max) @ Ib, Ic	500 mV	500 mV
Voltage - Collector Emitter Breakdown (Max)	45 V	45 V

TIGHTLY MATCHED, MONOLITHIC DUAL

Part	Voltage - Collector Emitter Breakdown (Max)	Current - Collector Cutoff (Max) [Max]	Frequency - Transition	Power - Max [Max]	Transistor Type	Package / Case	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Current - Collector (Ic) (Max) [Max]	Operating Temperature	Vce Saturation (Max) @ Ib, Ic	Supplier Device Package	Mounting Type	Package / Case [y]	Package / Case [x]
Linear Integrated Systems, Inc. LS351 SOT-23 6L	45 V	200 pA	200 MHz	500 mW	2 PNP (Dual)	SOT-23-6	150	10 mA	150 °C	500 mV	SOT-23-6	Surface Mount
Linear Integrated Systems, Inc. LS351 TO-78 6L	45 V	200 pA	200 MHz	500 mW	2 PNP (Dual)	TO-78-6 Metal Can	150	10 mA	150 °C	500 mV	TO-78-6	Through Hole
Linear Integrated Systems, Inc. LS351 SOIC 8L ROHS	45 V	200 pA	200 MHz	500 mW	2 PNP (Dual)	8-SOIC	150	10 mA	150 °C	500 mV	8-SOIC	Surface Mount	3.9 mm	0.154 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bipolar (BJT) Transistor Array 2 PNP (Dual) 45V 10mA 200MHz 500mW Surface Mount SOT-23-6
