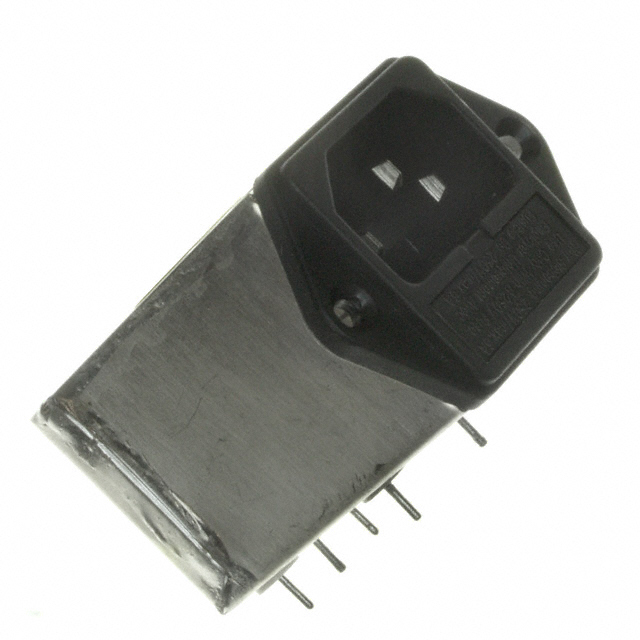

F2600FP06
ActiveCurtis Industries
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
F2600FP06
ActiveCurtis Industries
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | F2600FP06 | F2600F Series |
|---|---|---|
| Accomodates a Fuse | True | True |
| Approval Agency | CSA, CE, UL, TUV | CSA, CE, UL, TUV |
| Connector Style | IEC 320-C14 | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module | Receptacle, Male Blades - Module |
| Current Rating - Appliance Inlet | 6 A | 3 - 6 A |
| Current Rating - Filter | 6 A | 3 - 6 A |
| Features | - | Front or Rear Side Mount |
| Filter Type | Filtered (EMI, RFI) - Commercial | Filtered (EMI, RFI) - Commercial |
| Fuse Holder, Drawer | Fuse Holder | Fuse Holder |
| Mounting Type | Panel Mount, Flange, Through Hole, Right Angle | Panel Mount, Flange, Through Hole, Right Angle, Panel Mount, Flange |
| Panel Cutout Dimensions | - | Variable Size |
| Panel Thickness | 0.197 in | 0.197 in |
| Panel Thickness | 5 mm | 5 mm |
| Termination | Solder | Solder, Quick Connect |
| Voltage Rating - Appliance Inlet | 250 VAC | 250 VAC |
F2600F Series
PWR ENT MOD RCPT IEC320-C14 PNL
| Part | Termination | Current Rating - Filter | Connector Style | Panel Thickness | Panel Thickness | Voltage Rating - Appliance Inlet | Filter Type | Current Rating - Appliance Inlet | Accomodates a Fuse | Mounting Type | Fuse Holder, Drawer | Connector Type | Approval Agency | Panel Cutout Dimensions | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries F2600FP03 | Solder | 3 A | IEC 320-C14 | 0.197 in | 5 mm | 250 VAC | Filtered (EMI, RFI) - Commercial | 3 A | Panel Mount, Flange, Through Hole, Right Angle | Fuse Holder | Receptacle, Male Blades - Module | CE, CSA, TUV, UL | |||
Curtis Industries F2600FP06 | Solder | 6 A | IEC 320-C14 | 0.197 in | 5 mm | 250 VAC | Filtered (EMI, RFI) - Commercial | 6 A | Panel Mount, Flange, Through Hole, Right Angle | Fuse Holder | Receptacle, Male Blades - Module | CE, CSA, TUV, UL | |||
Curtis Industries F2600FA06 | Quick Connect | 6 A | IEC 320-C14 | 250 VAC | Filtered (EMI, RFI) - Commercial | 6 A | Flange, Panel Mount | Fuse Holder | Receptacle, Male Blades - Module | CE, CSA, TUV, UL | Variable Size | Front or Rear Side Mount |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 10 | $ 33.00 | |
Description
General part information
F2600F Series
Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange; Through Hole, Right Angle
