D41L1ZDAN2
ActiveOmron Automation and Safety

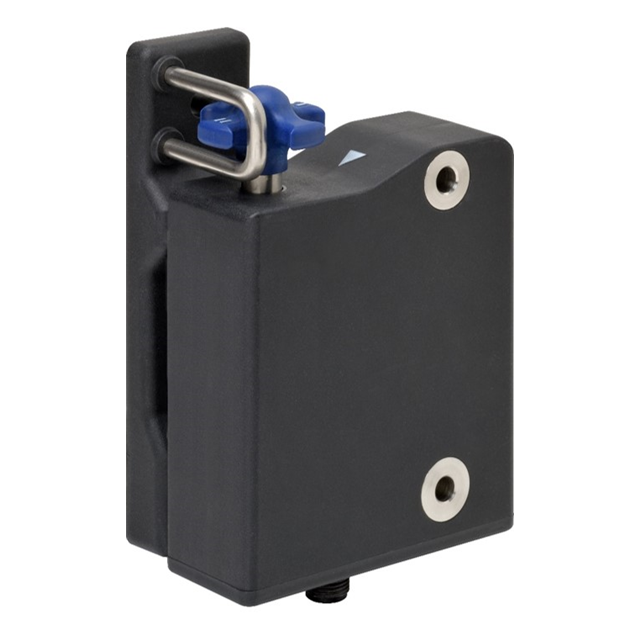

INTERLOCK RFID SOLENOID RELEASE
D41L1ZDAN2
ActiveOmron Automation and Safety
INTERLOCK RFID SOLENOID RELEASE
Description
General part information
D41L1ZDAN2
INTERLOCK RFID SOLENOID RELEASE
Technical Specifications
Parameters and characteristics for this part
| Specification | D41L1ZDAN2 |
|---|---|
| Actuator Type | Panel Disconnect |
| Approval Agency | cULus, CE |
| Current Rating | 250 mA |
| Features | Manual Override |
| Holding Force | 117 kgf |
| Ingress Protection Description | Waterproof, Water Resistant, Dust Tight |
| Ingress Protection IP Rating | IP66, IP67, IP69K |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | 0 °C |
| Termination Style | Connector (M12) |
| Type | Solenoid Release, RFID |
| Voltage - Supply | 24 VDC |
| Voltage Rating | 24 V |
