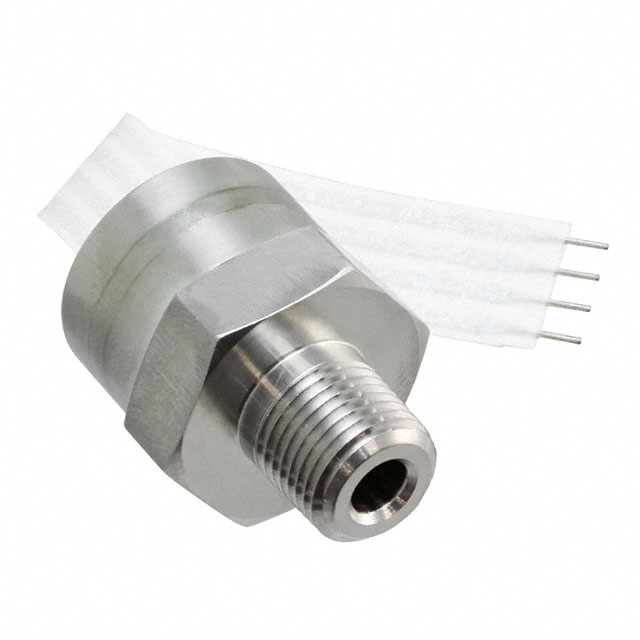

13C3000PA4K

Active

Honeywell Sensing and Productivity Solutions

SENSOR 3000PSIA COMP RATIO OUT

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SENSOR 3000PSIA COMP RATIO OUT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	13C3000PA4K	13C3000 Series

Accuracy	-	0.25 %
Applications	Industrial Automation	Industrial Automation
Features	Temperature Compensated	Temperature Compensated
Maximum Pressure	10000 PSI	10000 PSI
Maximum Pressure	68947.57 kPa	68947.57 kPa
Maximum Pressure	-	9000 PSI
Maximum Pressure	-	62052.82 kPa
Operating Pressure [x]	20684.27 kPa	20684.27 kPa
Operating Pressure [x]	3000 PSI	3000 PSI
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output [Max]	102 mV	102 mV
Output [Min]	98 mV	98 mV
Output Type	Analog Voltage	Analog Voltage, Wheatstone Bridge
Package / Case	Cylinder, Threaded	Cylinder, Threaded
Port Size	Female	Female
Port Size	3.18 mm	3.18 mm
Port Size	0.125 "	0.125 "
Port Size	-	NPT
Port Size	-	0.25 "
Port Size	-	6.35 mm
Port Size	-	Male
Port Style	Threaded	Threaded
Pressure Type	-	Sealed Gauge
Termination Style	PC Pin	PC Pin, Flex Cable
Voltage - Supply	15 V	15 V

SENSOR 3000PSIA COMP RATIO OUT

Part	Package / Case	Output Type	Port Style	Port Size	Port Size	Port Size	Operating Temperature [Max]	Operating Temperature [Min]	Operating Pressure [x]	Operating Pressure [x]	Termination Style	Maximum Pressure	Maximum Pressure	Features	Output [Max]	Output [Min]	Voltage - Supply	Applications	Pressure Type	Accuracy	Maximum Pressure [Max]	Maximum Pressure [Max]	Port Size [custom]	Port Size [x]	Port Size [x]	Port Size [custom]
Honeywell Sensing and Productivity Solutions 13C3000PA4K	Cylinder, Threaded	Analog Voltage	Threaded	Female	3.18 mm	0.125 "	125 °C	-40 °C	20684.27 kPa	3000 PSI	PC Pin	10000 PSI	68947.57 kPa	Temperature Compensated	102 mV	98 mV	15 V	Industrial Automation
Honeywell Sensing and Productivity Solutions 13C3000PS5K	Cylinder, Threaded	Wheatstone Bridge	Threaded				125 °C	-40 °C	20684.27 kPa	3000 PSI	Flex Cable			Temperature Compensated	102 mV	98 mV	15 V		Sealed Gauge	0.25 %	9000 PSI	62052.82 kPa	NPT	0.25 "	6.35 mm	Male

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 310.50

General part information

SENSOR 3000PSIA COMP RATIO OUT
