DML1010FDK-7
ActiveDiodes Inc
POWER LOAD SW, LOW SIDE, 85DEG C ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DML1010FDK-7
ActiveDiodes Inc
POWER LOAD SW, LOW SIDE, 85DEG C ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DML1010FDK-7 |
|---|---|
| Current - Output (Max) [Max] | 6 A |
| Features | Load Discharge |
| Interface | On/Off |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | High Side |
| Output Type | N-Channel |

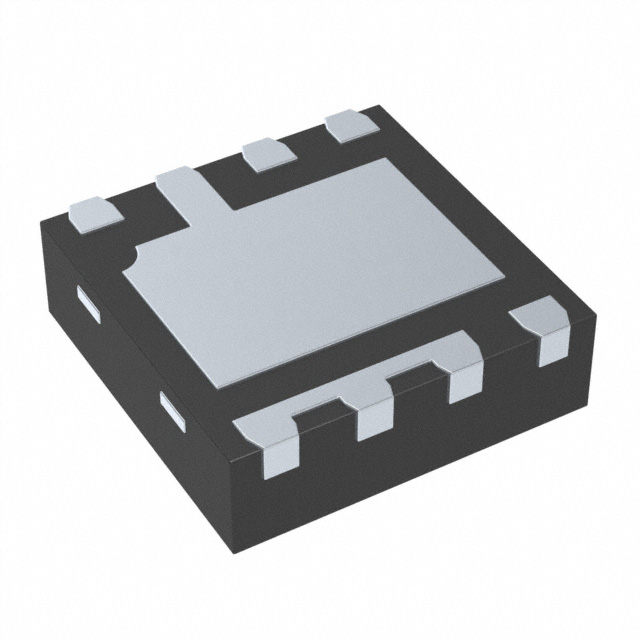

| Package / Case | 8-PowerUFDFN |
| Ratio - Input:Output [custom] | 1:1 |
| Rds On (Typ) | 8 mOhm |
| Supplier Device Package | U-DFN2020-8 (Type K) |
| Switch Type | General Purpose |
| Voltage - Load [Max] | 4 V |
| Voltage - Load [Min] | 0.8 V |
| Voltage - Supply (Vcc/Vdd) | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.79 | |
| 10 | $ 0.49 | |||
| 25 | $ 0.41 | |||
| 100 | $ 0.32 | |||
| 250 | $ 0.27 | |||
| 500 | $ 0.24 | |||
| 1000 | $ 0.22 | |||
| Digi-Reel® | 1 | $ 0.79 | ||
| 10 | $ 0.49 | |||
| 25 | $ 0.41 | |||
| 100 | $ 0.32 | |||
| 250 | $ 0.27 | |||
| 500 | $ 0.24 | |||
| 1000 | $ 0.22 | |||
| Tape & Reel (TR) | 3000 | $ 0.16 | ||
| 6000 | $ 0.15 | |||
| 9000 | $ 0.15 | |||
| 15000 | $ 0.14 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 0.84 | |
| 10 | $ 0.43 | |||
| 25 | $ 0.38 | |||
| 50 | $ 0.33 | |||
| 100 | $ 0.28 | |||
| 250 | $ 0.26 | |||
| 500 | $ 0.25 | |||
| 1000 | $ 0.22 | |||
Description
General part information
DML1010FDK Series
The DML1010FDK is a single channel load switch with very low on-resistance in a small package. It contains an N-channel MOSFET for up to VVBIAS-1.5V input voltage operation and 6A current channel with 3.2V to 5.5V bias supply. The load switch is controlled by a low voltage control signal through ON pin.
