HEX PRESS-FIT PIN
0542-1-00-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.
HEX PRESS-FIT PIN
Description
General part information
0542-1-00-15-00-00-03-0

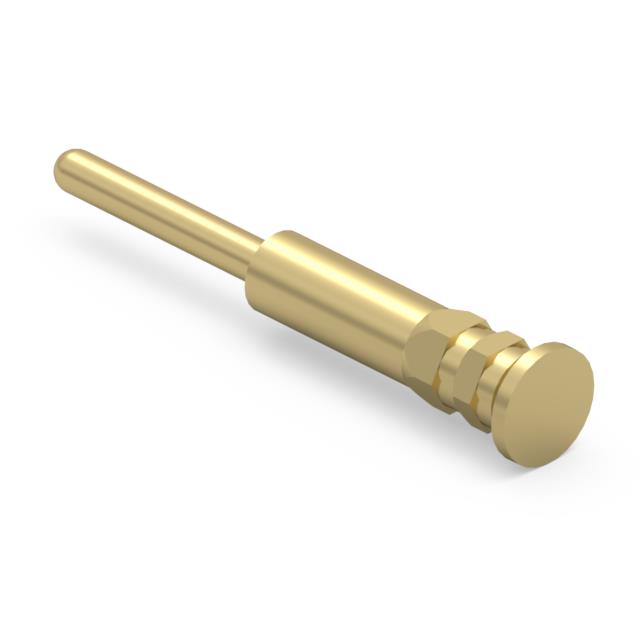

PC Pin Terminal Connector Through Hole Gold 0.020" (0.51mm) Dia
Technical Specifications
Parameters and characteristics for this part
| Specification | 0542-1-00-15-00-00-03-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Ąin |
| Contact Material | Brass Alloy |
| Flange Diameter | 0.055 in |
| Insulation | Non-Insulated |
| Length - Above Flange | 0.255 in |
| Length - Overall | 0.271 in |
| Mounting Hole Diameter | 0.041 in |
| Mounting Type | Through Hole |
| Pin Size - Above Flange (Diameter) | 0.02 in |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Solder |
