MB39A134PFT-G-BND-ERE1

Obsolete

Infineon Technologies

IC BATT PWR LI-ION 2-4C 24TSSOP

Search across all available documentation for this part.

Obsolete

Infineon Technologies

IC BATT PWR LI-ION 2-4C 24TSSOP

Technical Specifications

Parameters and characteristics for this part

Specification	MB39A134PFT-G-BND-ERE1

Battery Chemistry	Lithium Ion
Fault Protection	Over Temperature, Under Voltage
Function	Power Management
Mounting Type	Surface Mount
Number of Cells [Max]	4
Number of Cells [Min]	2 cells
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 °C

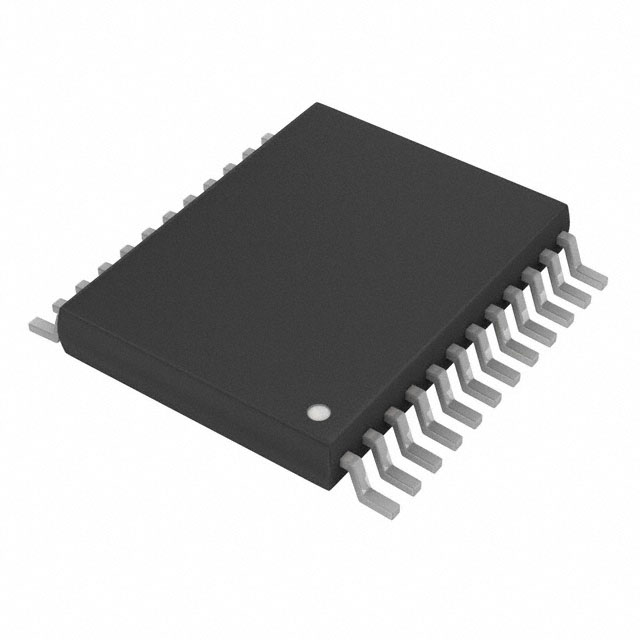

Package / Case	24-TFSOP
Package / Case [y]	4.4 mm
Package / Case [y]	0.173 in
Supplier Device Package	24-TSSOP

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Package / Case [y]	Package / Case	Package / Case [y]	Supplier Device Package	Function	Battery Chemistry	Fault Protection	Number of Cells [Min]	Number of Cells [Max]
Infineon Technologies MB39A134PFT-G-BND-ERE1	-30 °C	85 °C	Surface Mount	4.4 mm	24-TFSOP	0.173 in	24-TSSOP	Power Management	Lithium Ion	Over Temperature Under Voltage	2 cells	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Battery Power Management IC Lithium Ion 24-TSSOP

Technical documentation and resources

No documents available
