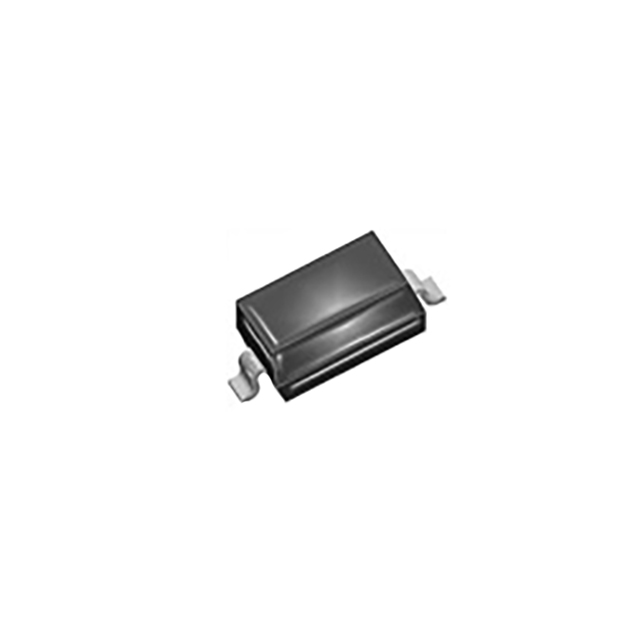

BAT54WS (S1)

Active

HY Electronic (Cayman) Limited

DIODE SCHOTTKY 30V 300MA SOD323

Search across all available documentation for this part.

Active

HY Electronic (Cayman) Limited

DIODE SCHOTTKY 30V 300MA SOD323

Technical Specifications

Parameters and characteristics for this part

Specification	BAT54WS (S1)

Capacitance @ Vr, F	10 pF
Current - Average Rectified (Io)	300 mA
Current - Reverse Leakage @ Vr	2 µA
Mounting Type	Surface Mount
Operating Temperature - Junction	125 °C
Package / Case	SOD-323, SC-76
Reverse Recovery Time (trr)	6 ns
Speed	200 mA, 500 ns
Supplier Device Package	SOD-323
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	30 V
Voltage - Forward (Vf) (Max) @ If	1 V

DIODE SCHOTTKY 30V 300MA SOD323

Part	Mounting Type	Reverse Recovery Time (trr)	Technology	Operating Temperature - Junction	Current - Reverse Leakage @ Vr	Capacitance @ Vr, F	Speed	Current - Average Rectified (Io)	Supplier Device Package	Voltage - DC Reverse (Vr) (Max) [Max]	Package / Case	Voltage - Forward (Vf) (Max) @ If
HY Electronic (Cayman) Limited BAT54WS (S1)	Surface Mount	6 ns	Schottky	125 °C	2 µA	10 pF	200 mA, 500 ns	300 mA	SOD-323	30 V	SC-76, SOD-323	1 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 30 V 300mA Surface Mount SOD-323
