Description
General part information

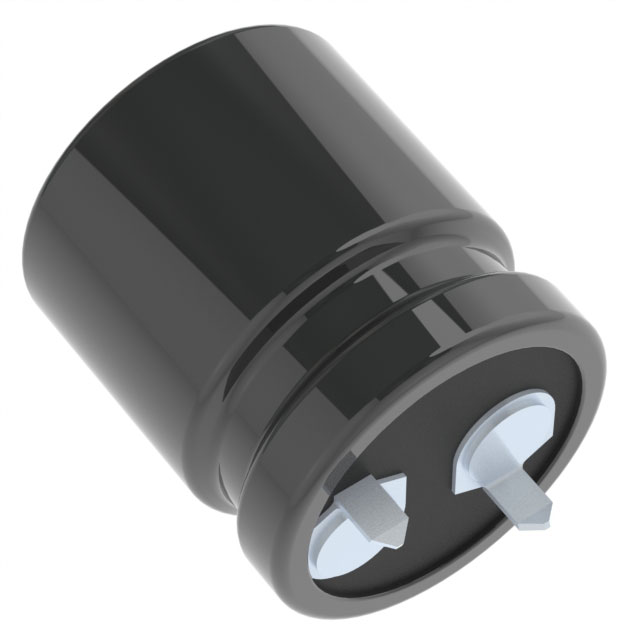

ESMQ451VSN101MP25S
The SMQ series Aluminium Electrolytic Capacitor features large capacitance and load life of 2000 hours at 85°C. It is downsized from current downsized snap-ins SMH series.
Technical Specifications
Parameters and characteristics for this part
| Specification | ESMQ451VSN101MP25S |
|---|---|
| Applications | General Purpose |
| Capacitance | 100 µF |
| Height - Seated (Max) | 0.984 in |
| Lead Spacing | 0.394 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Can - Snap-In, Radial |
| Polarization | Polar |
| Ripple Current | 1.33 A, 930 mA |
| Size / Dimension Diameter | 0.866 in |
| Tolerance | 20 % |
| Voltage - Rated | 450 V |
