SSI-LXH1090YD

Active

Lumex Opto/Components Inc.

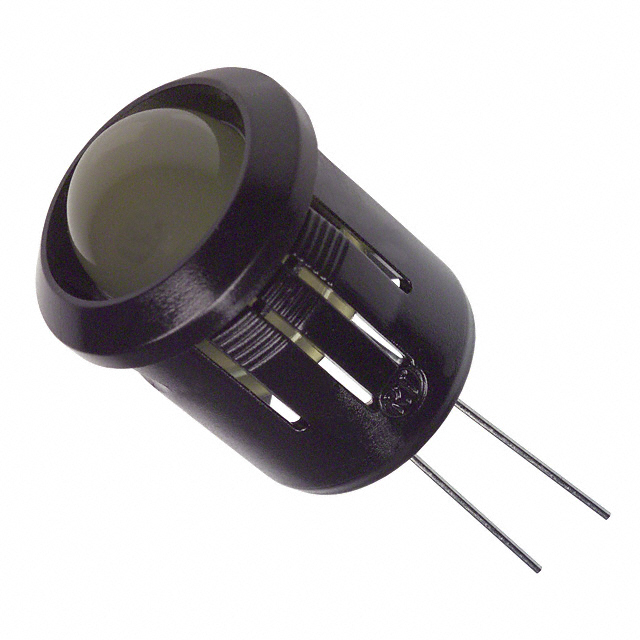

LED 10MM YEL PANEL MOUNT

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED 10MM YEL PANEL MOUNT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Panel Indicator Yellow Diffused 60° 2.1V 30mA

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

LED PANEL INDICATOR RED 2V

Part	Panel Cutout Dimensions	Panel Cutout Dimensions	Millicandela Rating	Lens Transparency	Panel Cutout Shape	Voltage	Wavelength - Peak	Lens Size	Lens Size	Viewing Angle	Lens Style	Lens Color	Lamp Color	Type	Lens Size [diameter]	Current	Termination Style	Wavelength - Peak [custom]	Wavelength - Peak [custom]
Lumex Opto/Components Inc. SSI-LXH1090SID-150	0.55 in	14 mm	550 mcd	Diffused	Round	2 V	636 nm	T-3 1/8	10 mm	60 °	Round with Domed Top	Red	Red	LED
Lumex Opto/Components Inc. SSI-LXH1090SRD-150	0.55 in	13.97 mm	550 mcd	Diffused	Round	1.7 V	660 nm			60 °	Round with Domed Top	Red	Red	LED	10 mm	30 mA
Lumex Opto/Components Inc. SSI-LXH1090GD	0.55 in	13.97 mm	30 mcd	Diffused	Round	2.2 V	565 nm			60 °	Round with Domed Top	Green	Green	LED	10 mm	25 mA
Lumex Opto/Components Inc. SSI-LXH1090ID	0.55 in	13.97 mm	40 mcd	Diffused	Round	2 V	635 nm			60 °	Round with Domed Top	Red	Red	LED	10 mm	30 mA
Lumex Opto/Components Inc. SSI-LXH1090YD	0.55 in	13.97 mm	30 mcd	Diffused	Round	2.1 V	585 nm			60 °	Round with Domed Top	Yellow	Yellow	LED	10 mm	30 mA
Lumex Opto/Components Inc. SSI-LXH1090SISUGW3	0.55 in	14 mm	200 mcd, 500 mcd	Diffused	Round	2 V, 2.2 V		T-3 1/8	10 mm	60 °	Round with Domed Top	White	Green, Red	LED		20 mA, 20 mA	PC Pin	636 nm	574 nm
Lumex Opto/Components Inc. SSI-LXH1090SRD	0.55 in	13.97 mm	550 mcd	Diffused	Round	1.7 V	660 nm			60 °	Round with Domed Top	Red	Red	LED	10 mm	30 mA
