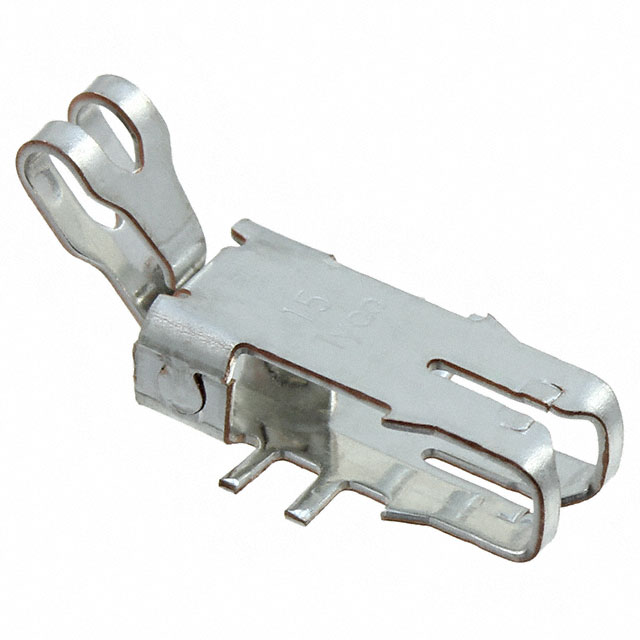

969125-1
ActiveTE Connectivity AMP Connectors
CONN MAG TERM 20-23AWG IDC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
969125-1
ActiveTE Connectivity AMP Connectors
CONN MAG TERM 20-23AWG IDC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 969125-1 |
|---|---|
| Terminal Type | Box IDC/Poke-In |
| Termination | IDC |
| Wire Gauge [Max] | 23 AWG |
| Wire Gauge [Min] | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.25 | |
| Tape & Reel (TR) | 40000 | $ 0.10 | ||
969125 Series
CONN MAG TERM 20-23AWG IDC
| Part | Termination | Terminal Type | Wire Gauge [Max] | Wire Gauge [Min] |
|---|---|---|---|---|
TE Connectivity AMP Connectors 969125-1 | IDC | Box IDC/Poke-In | 23 AWG | 20 AWG |
Description
General part information
969125 Series
Terminal Magnetic Connector 20-23 AWG IDC
