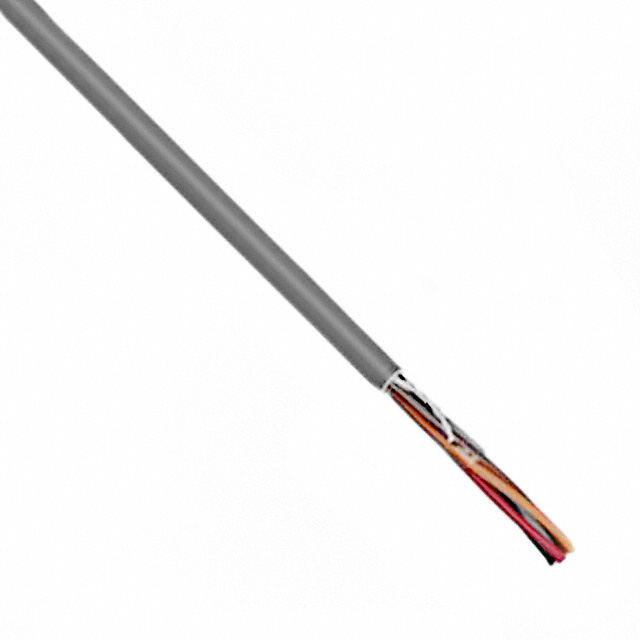

C9109A.41.10
UnknownPrysmian Group
CABLE 2COND 22AWG GRAY SHLD 100'
Deep-Dive with AI
Search across all available documentation for this part.
C9109A.41.10
UnknownPrysmian Group
CABLE 2COND 22AWG GRAY SHLD 100'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C9109A.41.10 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 7 |
| Conductor Strand [custom] | 30 AWG |
| Features | Rip Cord, Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 4.29 mm |
| Jacket (Insulation) Diameter [diameter] | 0.169 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Gray |
| Length [x] | 30.5 m |
| Length [x] | 100 ft |
| Number of Conductors | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -30 ░C |
| Shield Coverage | 100 % |
| Shield Material | Flexfoil® |
| Shield Type | Foil |
| Voltage | 300 V |
| Wire Gauge | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
C9109A.41.10
2 Conductor Multi-Conductor Cable Gray 22 AWG Foil 100.0' (30.5m)
Documents
Technical documentation and resources
No documents available
