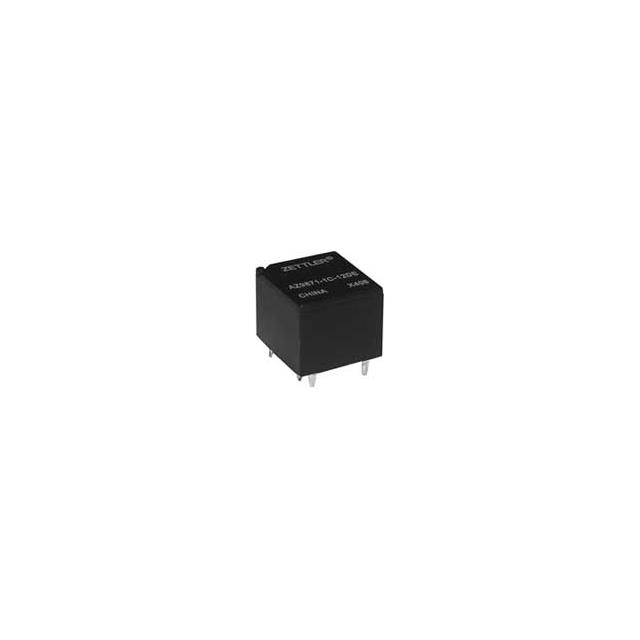

AZ9871-1A-12DET

Active

American Zettler

RELAY AUTOMOTIVE SPST 30A 12V

Search across all available documentation for this part.

Active

American Zettler

RELAY AUTOMOTIVE SPST 30A 12V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AZ9871-1A-12DET	AZ9871 Series

Coil Current	47.2 mA	23.8 - 47.2 mA
Coil Power	567 mW	567 - 570 mW
Coil Resistance	254 Ohms	1.01 - 254 Ohms
Coil Type	Non Latching	Non Latching
Coil Voltage	12 VDC	12 - 24 VDC
Contact Form	SPST-NO (1 Form A)	SPST-NO (1 Form A), SPDT (1 Form C), DPST-NO (2 Form A)
Contact Material	Silver Tin Oxide (AgSnO)	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	30 A	25 - 30 A
Features	Sealed - Epoxy	Sealed - Epoxy
Mounting Type	Through Hole	Through Hole
Must Operate Voltage	6.9 VDC	6.9 - 13.8 VDC
Must Release Voltage	1.5 VDC	1.5 - 3 VDC
Operate Time	3 ms	3 ms
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Release Time	1.5 ms	1.5 ms
Switching Voltage [Max]	24 VDC	24 VDC
Termination Style	PC Pin	PC Pin

RELAY AUTOMOTIVE SPST 30A 12V

Part	Coil Resistance	Must Release Voltage	Contact Rating (Current)	Coil Voltage	Release Time	Switching Voltage [Max]	Coil Current	Operate Time	Contact Form	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Mounting Type	Contact Material	Coil Type	Must Operate Voltage	Features	Coil Power
American Zettler AZ9871-1A-12DET	254 Ohms	1.5 VDC	30 A	12 VDC	1.5 ms	24 VDC	47.2 mA	3 ms	SPST-NO (1 Form A)	-40 °C	105 ░C	PC Pin	Through Hole	Silver Tin Oxide (AgSnO)	Non Latching	6.9 VDC	Sealed - Epoxy	567 mW
American Zettler AZ9871-1C-24DET	1.01 kOhms	3 VDC	25 A	24 VDC	1.5 ms	24 VDC	23.8 mA	3 ms	SPDT (1 Form C)	-40 °C	105 ░C	PC Pin	Through Hole	Silver Tin Oxide (AgSnO)	Non Latching	13.8 VDC	Sealed - Epoxy	570 mW
American Zettler AZ9871-2A-12DET	254 Ohms	1.5 VDC	30 A	12 VDC	1.5 ms	24 VDC	47.2 mA	3 ms	DPST-NO (2 Form A)	-40 °C	105 ░C	PC Pin	Through Hole	Silver Tin Oxide (AgSnO)	Non Latching	6.9 VDC	Sealed - Epoxy	567 mW
American Zettler AZ9871-1C-12DET	254 Ohms	1.5 VDC	25 A	12 VDC	1.5 ms	24 VDC	47.2 mA	3 ms	SPDT (1 Form C)	-40 °C	105 ░C	PC Pin	Through Hole	Silver Tin Oxide (AgSnO)	Non Latching	6.9 VDC	Sealed - Epoxy	567 mW

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RELAY AUTOMOTIVE SPST 30A 12V
