Description
General part information
0192030491

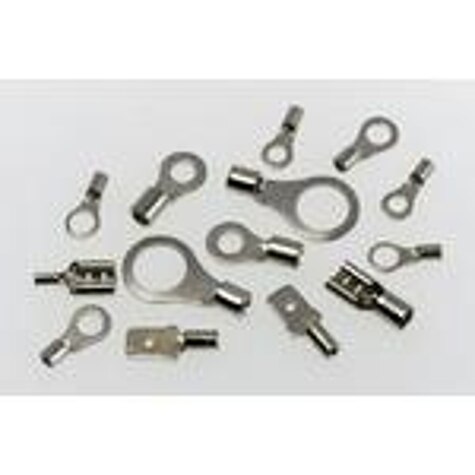

TERMINALS B-S-125-56 16-14 STEEL RING 56 STUD
Technical Specifications
Parameters and characteristics for this part
| Specification | 0192030491 |
|---|---|
| Contact Finish | Nickel |
| Contact Material | Steel |
| Features | High Temperature |
| Insulation | Non-Insulated |
| Length - Overall | 0.902 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 0.3125 in |
| Stud/Tab Size | 16 Stud, 5 Stud |
| Stud/Tab Size (Type) | Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.031 in |
| Width - Outer Edges | 0.482 in |
| Wire Gauge (AWG) (Max) | 16 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
