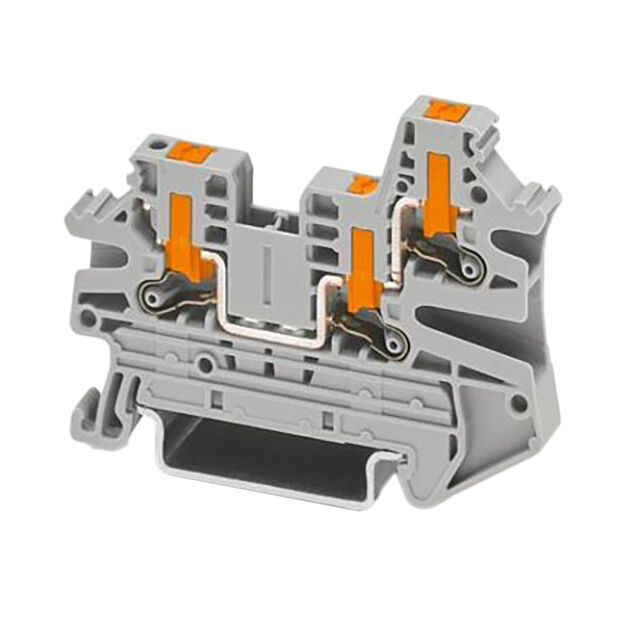

1078966
ActivePhoenix Contact
DIN RAIL TERMINAL BLOCKS TERM BLOCK 800V GRAY TWIN
1078966
ActivePhoenix Contact
DIN RAIL TERMINAL BLOCKS TERM BLOCK 800V GRAY TWIN
Description
General part information
1078966
Terminal Block Connector 3 Position Feed Through Gray 12-26 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | 1078966 |
|---|---|
| Color | Gray |
| Current - IEC | 24 A |
| Current - UL | 20 A |
| Material - Insulation | Polyamide, PA, Nylon |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 1 |
| Number of Positions | 3 |
| Stripping Length (Max) | 10 mm |
| Stripping Length (Min) | 8 mm |
| Terminal Width | 5.2 mm |
| Termination Style | Push In, Spring |
| Type | Feed Through |
| Voltage - IEC | 800 V |
| Voltage - UL | 600 V |
| Wire Gauge or Range - AWG (Max) | 25.5 AWG |
| Wire Gauge or Range - AWG (Min) | 12 AWG |
| Wire Gauge or Range - mm² (Maximum) | 4 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.14 mm² |
