391-106-524-203
ActiveEDAC Inc.

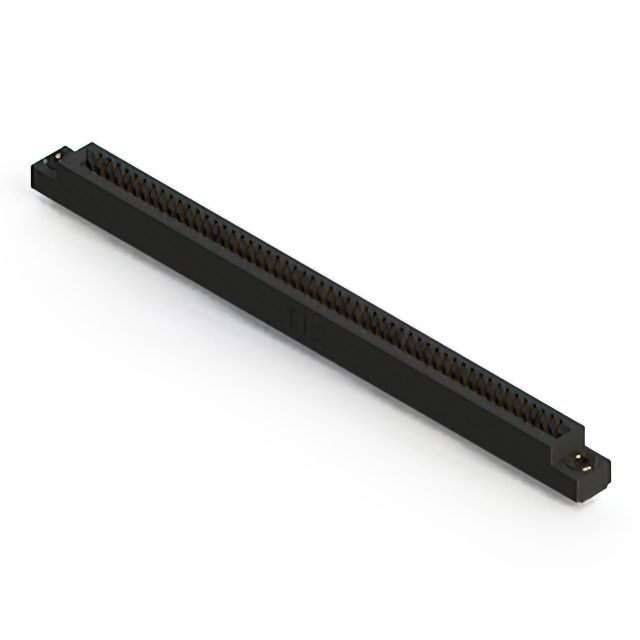

CARD EDGE CONNECTOR, 106 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, HOLE 0.116, BLACK INSULATOR,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
391-106-524-203
ActiveEDAC Inc.
CARD EDGE CONNECTOR, 106 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, HOLE 0.116, BLACK INSULATOR,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 391-106-524-203 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 106 |
| Number of Positions/Bay/Row [custom] | 53 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
391-106 Series
| Part | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Contact Type | Number of Positions/Bay/Row [custom] | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Material - Insulation | Number of Rows | Mounting Type | Card Type | Termination | Pitch [x] | Pitch [x] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Read Out | Gender | Color | Number of Positions | Termination Rows | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | 10 Áin | 0.25 Ám | Gold | Semi Bellows | 53 | Copper Alloy | -40 °C | 105 ░C | Polyester Thermoplastic | 2 | Through Hole | Non Specified - Dual Edge | Solder | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Female | Black | 106 | 2 | |
EDAC Inc. | 4-40 Flush Mount Threaded Insert Top Opening | 10 Áin | 0.25 Ám | Gold | Semi Bellows | 53 | Copper Alloy | -40 °C | 105 ░C | Polyester Thermoplastic | 2 | Through Hole | Non Specified - Dual Edge | Solder | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Female | Black | 106 | 2 | |||
EDAC Inc. | 10 Áin | 0.25 Ám | Gold | Semi Bellows | 53 | Copper Alloy | -40 °C | 105 ░C | Polyester Thermoplastic | 2 | Board Edge Straddle Mount | Non Specified - Dual Edge | Solder Eyelet(s) | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Female | Black | 106 | 2 | Card Extender | |||
EDAC Inc. | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | 10 Áin | 0.25 Ám | Gold | Semi Bellows | 53 | Copper Alloy | -40 °C | 105 ░C | Polyester Thermoplastic | 2 | Through Hole | Non Specified - Dual Edge | Solder | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Female | Black | 106 | 2 | |
EDAC Inc. | 10 Áin | 0.25 Ám | Gold | Semi Bellows | 53 | Copper Alloy | -40 °C | 105 ░C | Polyester Thermoplastic | 2 | Through Hole | Non Specified - Dual Edge | Solder | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Female | Black | 106 | 2 | ||||
EDAC Inc. | Flush Mount M3 Threaded Insert Top Opening | 10 Áin | 0.25 Ám | Gold | Semi Bellows | 53 | Copper Alloy | -40 °C | 105 ░C | Polyester Thermoplastic | 2 | Through Hole | Non Specified - Dual Edge | Solder | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Female | Black | 106 | 2 | Card Extender | ||
EDAC Inc. | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | 10 Áin | 0.25 Ám | Gold | Semi Bellows | 53 | Copper Alloy | -40 °C | 105 ░C | Polyester Thermoplastic | 2 | Through Hole | Non Specified - Dual Edge | Solder | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Female | Black | 106 | 2 | |
EDAC Inc. | 4-40 Flush Mount Threaded Insert Top Opening | 10 Áin | 0.25 Ám | Gold | Semi Bellows | 53 | Copper Alloy | -40 °C | 105 ░C | Polyester Thermoplastic | 2 | Through Hole | Non Specified - Dual Edge | Solder | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Female | Black | 106 | 2 | Card Extender | ||
EDAC Inc. | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | 10 Áin | 0.25 Ám | Gold | Semi Bellows | 53 | Copper Alloy | -40 °C | 105 ░C | Polyester Thermoplastic | 2 | Through Hole | Non Specified - Dual Edge | Solder | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Female | Black | 106 | 2 | |
EDAC Inc. | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | 10 Áin | 0.25 Ám | Gold | Semi Bellows | 53 | Copper Alloy | -40 °C | 105 ░C | Polyester Thermoplastic | 2 | Through Hole | Non Specified - Dual Edge | Solder | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Female | Black | 106 | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
391-106 Series
106 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
