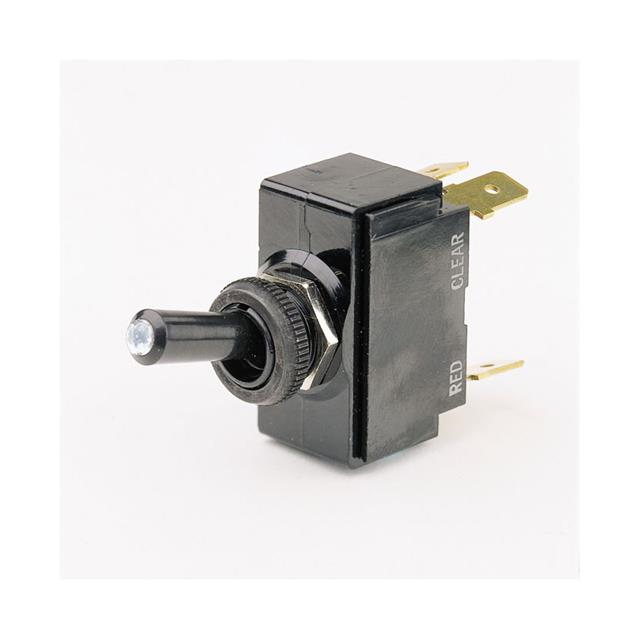

M-54111-01

Active

Cole Hersee

SWITCH TOGGLE SPST 25A 12V

Search across all available documentation for this part.

Active

Cole Hersee

SWITCH TOGGLE SPST 25A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	M-54111-01

Actuator Length [x]	17.46 mm
Actuator Material	Brass, Nickel Plated
Actuator Type	Standard Round
Bushing Thread	15/32-32
Circuit	SPST
Current Rating (Amps)	25 A
Illumination	Illuminated
Illumination Type, Color	Incandescent, Red
Illumination Voltage (Nominal)	12 VDC
Panel Cutout Dimensions [diameter]	11.9 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - DC	12 V

SWITCH TOGGLE SPST 25A 12V

Part	Voltage Rating - DC	Actuator Length [x]	Actuator Type	Illumination Voltage (Nominal)	Illumination Type, Color	Current Rating (Amps)	Actuator Material	Circuit	Termination Style	Bushing Thread	Switch Function	Illumination	Panel Cutout Dimensions [diameter]
Cole Hersee M-54111-01	12 V	17.46 mm	Standard Round	12 VDC	Incandescent, Red	25 A	Brass, Nickel Plated	SPST	Quick Connect - 0.250" (6.3mm)	15/32-32	On-Off	Illuminated	11.9 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPST Panel Mount
