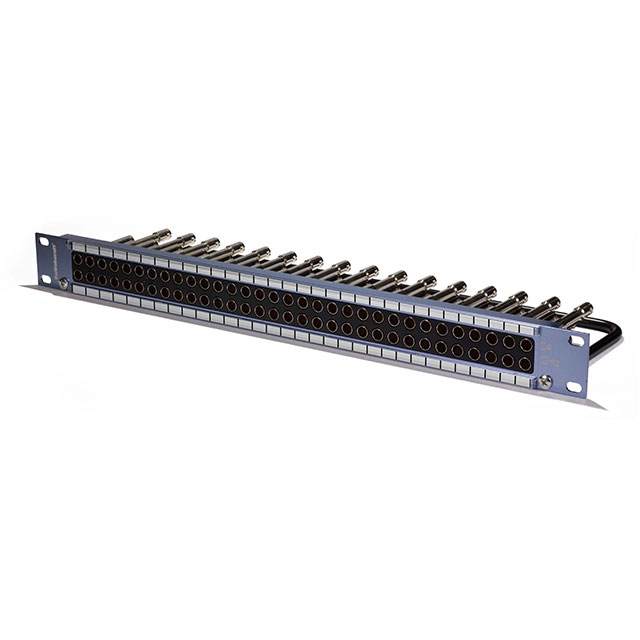

MVP32K1UHD
ActiveSwitchcraft Inc.
CONNECTOR ACCESSORIES PATCH PANEL STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MVP32K1UHD
ActiveSwitchcraft Inc.
CONNECTOR ACCESSORIES PATCH PANEL STRAIGHT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MVP32K1UHD | MVP32K Series |
|---|---|---|
| - | - | |
| Connector Type | WECo Jack | WECo Jack |
| Connector Type | - | 75 Ohm |
| Number of Positions | 64 | 64 |
| Number of Rows | 2 | 2 |
| Type | Video Pass Through Panel | Video Pass Through Panel |
MVP32K Series
CONN PATCHBAY MID DL ROW 32 JACK
| Part | Type | Number of Rows | Number of Positions | Connector Type | Connector Type |
|---|---|---|---|---|---|
Switchcraft Inc. MVP32K2N75T | Video Pass Through Panel | 2 | 64 | WECo Jack | 75 Ohm |
Switchcraft Inc. MVP32K3N75TX | Video Pass Through Panel | 2 | 64 | WECo Jack | 75 Ohm |
Switchcraft Inc. MVP32K1NNTX | Video Pass Through Panel | 2 | 64 | WECo Jack | |
Switchcraft Inc. MVP32K1UHD | Video Pass Through Panel | 2 | 64 | WECo Jack | |
Switchcraft Inc. MVP32K175TX | Video Pass Through Panel | 2 | 64 | WECo Jack | 75 Ohm |
Switchcraft Inc. MVP32K275TX | Video Pass Through Panel | 2 | 64 | WECo Jack | 75 Ohm |
Switchcraft Inc. MVP32K1N75TX | Video Pass Through Panel | 2 | 64 | WECo Jack | 75 Ohm |
Switchcraft Inc. MVP32K1NTX | Video Pass Through Panel | 2 | 64 | WECo Jack | |
Switchcraft Inc. MVP32K375TX | Video Pass Through Panel | 2 | 64 | WECo Jack | 75 Ohm |
Switchcraft Inc. MVP32K3NTX | Video Pass Through Panel | 2 | 64 | WECo Jack |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2222.50 | |
Description
General part information
MVP32K Series
CONNECTOR ACCESSORIES PATCH PANEL STRAIGHT
Documents
Technical documentation and resources
