83706 002500

Active

Belden Inc.

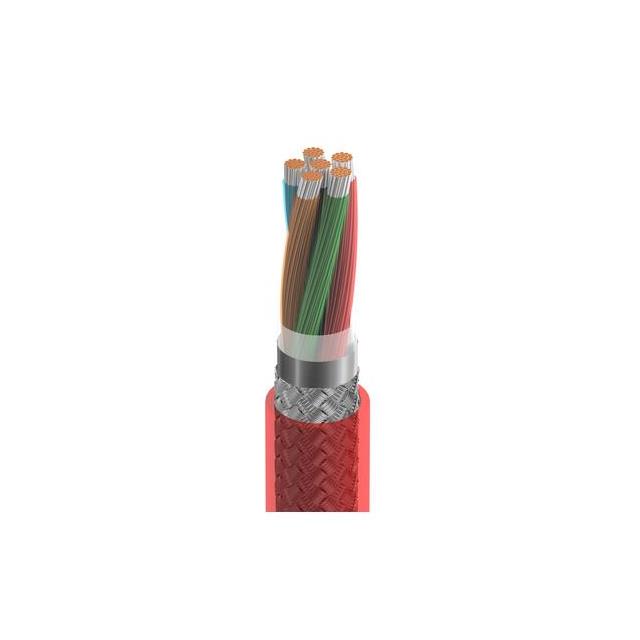

CABLE 6COND 16AWG RED SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 6COND 16AWG RED SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	83706 002500

Cable Type	Multi-Conductor
Conductor Insulation	Fluorinated Ethylene-Propylene (FEP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19 Strands
Conductor Strand [custom]	29 AWG
Jacket (Insulation) Diameter [diameter]	6.73 mm
Jacket (Insulation) Diameter [diameter]	0.265 in
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP), Plenum
Jacket (Insulation) Thickness	0.356 mm
Jacket (Insulation) Thickness	0.014 in
Jacket Color	Red
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	6
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-70 °C
Ratings	UL Style CMP
Shield Coverage	100 %, 85 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	16 AWG

Part	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Wire Gauge	Shield Coverage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Shield Material	Ratings	Operating Temperature [Max]	Operating Temperature [Min]	Voltage	Length	Length	Shield Type	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Number of Conductors	Conductor Insulation	Jacket Color	Usage	Length [x]	Length [x]
Belden Inc. 83706 0021000	19 Strands	29 AWG	Fluorinated Ethylene-Propylene (FEP) Plenum	16 AWG	85 % 100 %	6.73 mm	0.265 in	Multi-Conductor	Aluminum Copper Tinned	UL Style CMP	200 °C	-70 °C	300 V	1000 ft	304.8 m	Braid Foil	Copper Tinned	0.356 mm	0.014 in	6	Fluorinated Ethylene-Propylene (FEP)	Red	Audio Control Instrumentation
Belden Inc. 83706 002500	19 Strands	29 AWG	Fluorinated Ethylene-Propylene (FEP) Plenum	16 AWG	85 % 100 %	6.73 mm	0.265 in	Multi-Conductor	Aluminum Copper Tinned	UL Style CMP	200 °C	-70 °C	300 V			Braid Foil	Copper Tinned	0.356 mm	0.014 in	6	Fluorinated Ethylene-Propylene (FEP)	Red	Audio Control Instrumentation	500 '	152.4 m
Belden Inc. 83706 002100	19 Strands	29 AWG	Fluorinated Ethylene-Propylene (FEP) Plenum	16 AWG	85 % 100 %	6.73 mm	0.265 in	Multi-Conductor	Aluminum Copper Tinned	UL Style CMP	200 °C	-70 °C	300 V			Braid Foil	Copper Tinned	0.356 mm	0.014 in	6	Fluorinated Ethylene-Propylene (FEP)	Red	Audio Control Instrumentation	100 ft	30.5 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 15.50

General part information

6 Conductor Multi-Conductor Cable Red 16 AWG Foil, Braid 500.0' (152.4m)
