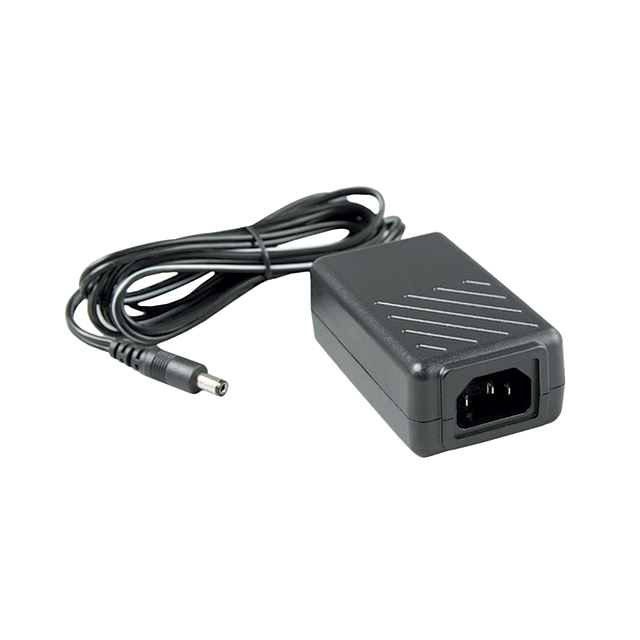

IPD5019-760

Active

Inventus Power

AC/DC DESKTOP ADAPTER 19V 49W

Search across all available documentation for this part.

Active

Inventus Power

AC/DC DESKTOP ADAPTER 19V 49W

Technical Specifications

Parameters and characteristics commom to parts in this series

AC/DC DESKTOP ADAPTER 19V 49W

Part	Form	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Power (Watts)	No Load Power Consumption	Applications	Region Utilized	Current - Output (Max) [Max]	Polarization	Input Type	Output Connector [diameter]	Output Connector [x]	Output Connector	Cord Length	Cord Length	Input Connector	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Output	Weight	Weight	Efficiency
Inventus Power IPD5019-760	Desktop (Class I)	60 °C	0 °C	CE, cTUVus	49 W	100 mW	ITE (Commercial)	North America	2.6 A	Positive Center	Cord	2.5 mm, 5.5 mm	9.5 mm	Barrel Plug	1.22 m	48 in	IEC 320-C14	114.2 mm	2.26 in	36.5 mm	1.44 "	4.5 in	57.5 mm	19 V	200.03 g	0.441 lb	Level VI
Inventus Power IPD5019-760S	Desktop (Class I)	60 °C	0 °C	CE, cTUVus	49 W	100 mW	ITE (Commercial)	North America	2.6 A	Positive Center	Cord	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug	1.22 m	48 in	IEC 320-C14	114.2 mm	2.26 in	36.5 mm	1.44 "	4.5 in	57.5 mm	19 V	200.03 g	0.441 lb	Level VI

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

19V 49 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
