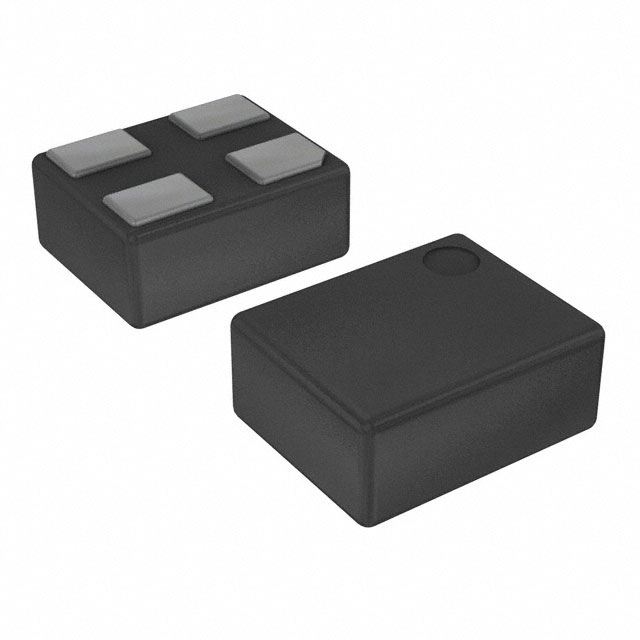

DSC6331MI1BA-038.0000
ObsoleteMicrochip Technology
MEMS OSC XO 38.0000MHZ LVCMOS
DSC6331MI1BA-038.0000
ObsoleteMicrochip Technology
MEMS OSC XO 38.0000MHZ LVCMOS
Description
General part information
DSC6331MI1BA-038.0000
38 MHz XO (Standard) LVCMOS Oscillator 1.8V ~ 3.3V 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | DSC6331MI1BA-038.0000 |
|---|---|
| Base Resonator | MEMS |
| Current - Supply (Max) | 3 mA |
| Frequency | 38 MHz |
| Frequency Stability | 50 ppm |
| Height - Seated (Max) | 0.035 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | LVCMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension Length | 0.079 in |
| Size / Dimension Width | 0.063 in |
| Spread Spectrum Bandwidth | 0.5 % |
| Spread Spectrum Bandwidth Mode | Center Spread |
| Type | XO (Standard) |
| Voltage - Supply (Maximum) | 3.63 V, 3.3 V |
| Voltage - Supply (Minimum) | 1.71 V, 1.8 V |
