1-103660-4
ActiveTE Connectivity AMP Connectors

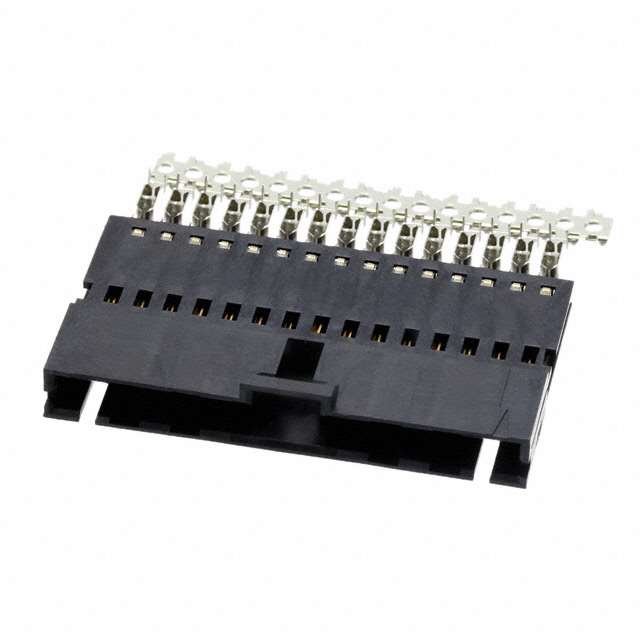

CONN PLUG 15P IDC 22-26AWG GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-103660-4
ActiveTE Connectivity AMP Connectors
CONN PLUG 15P IDC 22-26AWG GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-103660-4 | 103660 Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Black | Black |
| Connector Type | Plug | Plug |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 15 µin | 15 µin |
| Contact Finish Thickness | 0.38 µm | 0.38 µm |
| Contact Type | Male Pin | Male Pin |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 15 | 14 - 15 |
| Number of Positions | - | 16 |
| Number of Rows | 1 | 1 |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
| Wire Gauge [Max] | 26 AWG | 26 AWG |
| Wire Gauge [Min] | 22 AWG | 22 AWG |
| Wire Type | Discrete | Discrete |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
103660 Series
CONN PLUG 14P IDC 22-26AWG GOLD
| Part | Contact Finish | Connector Type | Wire Gauge [Min] | Wire Gauge [Max] | Mounting Type | Color | Number of Rows | Number of Positions | Cable Termination | Contact Finish Thickness | Contact Finish Thickness | Wire Type | Pitch [x] | Pitch [x] | Contact Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-103660-3 | Gold | Plug | 22 AWG | 26 AWG | Free Hanging (In-Line) | Black | 1 | 14 | IDC | 15 µin | 0.38 µm | Discrete | 2.54 mm | 0.1 in | Male Pin | |
TE Connectivity AMP Connectors 6-103660-5 | Gold | Plug | 22 AWG | 26 AWG | Free Hanging (In-Line) | Black | 1 | IDC | 15 µin | 0.38 µm | Discrete | 2.54 mm | 0.1 in | Male Pin | 16 | |
TE Connectivity AMP Connectors 1-103660-4 | Gold | Plug | 22 AWG | 26 AWG | Free Hanging (In-Line) | Black | 1 | 15 | IDC | 15 µin | 0.38 µm | Discrete | 2.54 mm | 0.1 in | Male Pin |
Description
General part information
103660 Series
15 Position Rectangular Plug Connector IDC Gold 22-26 AWG
