926682-3

Active

TE Connectivity AMP Connectors

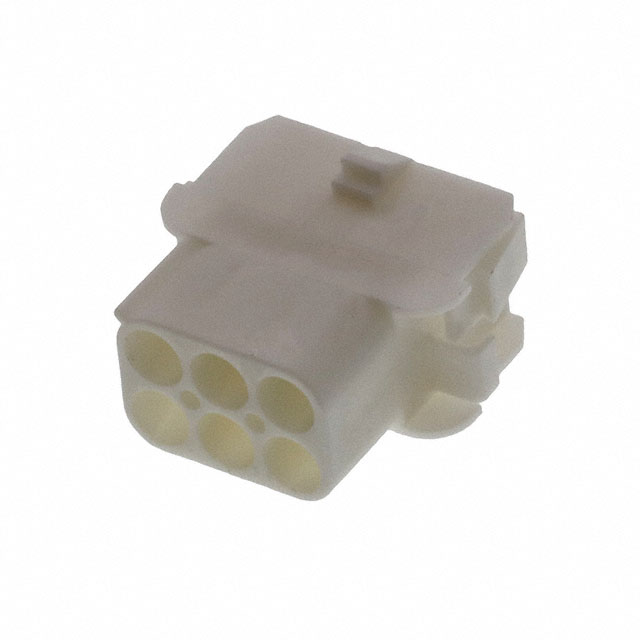

CONN RCPT HSG 6POS 6.35MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 6POS 6.35MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	926682-3	926682 Series

Color	Natural	Natural
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Male Pin, Female Socket
Fastening Type	Latch Holder	Locking Ramp, Latch Holder
Insulation Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Mounting Type	Panel Mount, Snap-In	Through Hole, Panel Mount, Snap-In
Note	Contacts Not Included	Contacts Not Included
Number of Positions	6	6
Number of Rows	2	2
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch [x]	0.25 in	0.25 in
Pitch [x]	6.35 mm	6.35 mm
Row Spacing	6.35 mm	6.35 mm
Row Spacing	0.25 in	0.25 in

CONN RCPT HSG 6POS 6.35MM

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Termination	Fastening Type	Connector Type	Mounting Type	Number of Rows	Pitch [x]	Pitch [x]	Insulation Material	Color	Contact Type	Row Spacing	Row Spacing	Note
TE Connectivity AMP Connectors 926682-1	-55 °C	125 °C	6	Crimp	Locking Ramp	Receptacle	Through Hole	2	0.25 in	6.35 mm	Polyamide (PA66), Nylon 6/6	Natural	Male Pin	6.35 mm	0.25 in	Contacts Not Included
TE Connectivity AMP Connectors 926682-3	-55 °C	125 °C	6	Crimp	Latch Holder	Receptacle	Panel Mount, Snap-In	2	0.25 in	6.35 mm	Polyamide (PA66), Nylon 6/6	Natural	Female Socket	6.35 mm	0.25 in	Contacts Not Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Rectangular Connectors - Housings Receptacle Natural 0.250" (6.35mm)
