000-18225

Active

AMPHENOL RF

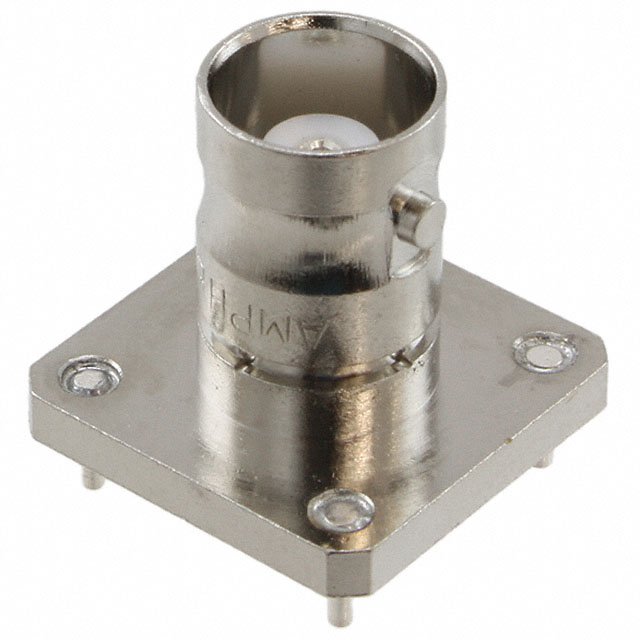

CONN BNC 0HZ TO 4GHZ 50OHM SOLDER ST THRU-HOLE RCP SILVER

Search across all available documentation for this part.

Active

AMPHENOL RF

CONN BNC 0HZ TO 4GHZ 50OHM SOLDER ST THRU-HOLE RCP SILVER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	000-18225	000-18 Series

Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Cable Group	-	58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58
Center Contact Material	Beryllium Copper	Beryllium Copper, Brass
Center Contact Plating	Silver	Silver
Connector Style	BNC	BNC, N Type
Connector Type	Female Socket, Jack	Female Socket, Jack, Male Pin, Plug
Contact Termination	Solder	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock	Bayonet Lock
Frequency - Max [Max]	4 GHz	4 - 11 GHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Includes	-	6 pcs - 1 Connector, 1 Braid Clamp, 1 Clamp, 1 End Cap, 1 Insulator, 1 Washer
Insertion Loss	0.2 dB	0.2 dB
Mating Cycles	500	500
Mounting Feature	Flange	Flange
Mounting Type	-	Free Hanging (In-Line), Right Angle
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Solder	Solder, Clamp
Voltage Rating	500 V	500 V

CONN BNC 0HZ TO 4GHZ 50OHM SOLDER ST THRU-HOLE RCP SILVER

Part	Fastening Type	Voltage Rating	Mating Cycles	Frequency - Max [Max]	Housing Color	Insertion Loss	Shield Termination	Body Material	Contact Termination	Center Contact Plating	Center Contact Material	Body Finish	Connector Type	Number of Ports	Impedance	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Connector Style	Includes	Mounting Type	Cable Group
AMPHENOL RF 000-18225	Bayonet Lock	500 V	500	4 GHz	Silver	0.2 dB	Solder	Brass	Solder	Silver	Beryllium Copper	Nickel	Female Socket, Jack	1	50 Ohms	Flange	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	BNC
AMPHENOL RF 000-18750			500	11 GHz	Silver		Clamp	Brass	Solder	Silver	Brass	Nickel	Male Pin, Plug	1	50 Ohms		-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	N Type	6 pcs - 1 Connector, 1 Braid Clamp, 1 Clamp, 1 End Cap, 1 Insulator, 1 Washer	Free Hanging (In-Line), Right Angle	141, 303, 58A, 58B, 58C, 9907, Belden B7806A, LMR-195, RG-58

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Jack, Female Socket 50 Ohms Panel Mount Solder
