LD25W-72-C0350

Obsolete

EPtronics, Inc.

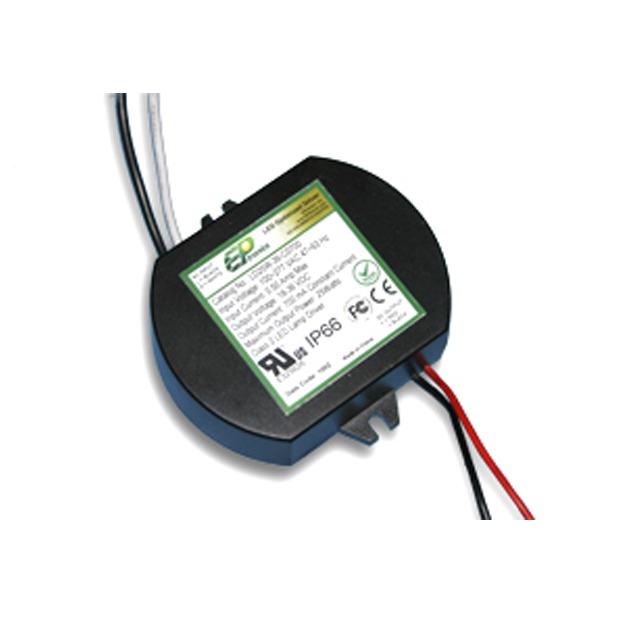

LED DRIVER AC/DC CC 24-72V 350MA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LD25W-72-C0350

Obsolete

EPtronics, Inc.

LED DRIVER AC/DC CC 24-72V 350MA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LD25W-72-C0350	LD25W Series

Approval Agency	CE, FCC, cURus	CE, FCC, cURus
Current - Output (Max) [Max]	350 mA	1.04 - 850 mA
Dimming	Analog, PWM	Analog, PWM, Non-Dimmable
Dimming	-	10 V
Dimming	-	0 V
Efficiency	86 %	78 - 86 %
Features	SCP, OCP, OVP	SCP, OCP, OVP
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-30 ░C	-40 - -30 °C
Power (Watts)	25 W	25 W
Ratings	IP66	IP66
Size / Dimension	-	78 mm
Size / Dimension	-	3.09 "
Size / Dimension	-	3.07 in
Size / Dimension	-	78.5 mm
Size / Dimension [diameter]	3.15 in	3.15 in
Size / Dimension [diameter]	80 mm	80 mm
Size / Dimension [z]	0.99 "	0.99 "
Size / Dimension [z]	25.1 mm	25.1 mm
Standard Number	-	C22.2, UL 8750
Termination Style	Wire Leads	Wire Leads
Topology	AC DC Converter	AC DC Converter
Type	Constant Current	Constant Current, Constant Voltage
Voltage - Input (Max) [Max]	305 VAC	305 VAC
Voltage - Input (Min) [Min]	90 VAC	90 - 100 VAC
Voltage - Isolation	3750 V	2500 - 3750 V
Voltage - Output	-	12 - 36 V
Voltage - Output [Max]	72 V	12 - 72 V
Voltage - Output [Min]	24 V	4 - 36 V
Weight	-	0.444 lb
Weight	-	201.3 g

LD25W Series

18~36V@700MA, 0~10V DIM TO 0%

Part	Voltage - Input (Min) [Min]	Termination Style	Power (Watts)	Topology	Voltage - Input (Max) [Max]	Type	Ratings	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Weight	Weight	Features	Standard Number	Efficiency	Voltage - Output [Max]	Voltage - Output [Min]	Voltage - Isolation	Current - Output (Max) [Max]	Dimming [Max] [custom]	Dimming [Min] [custom]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Number of Outputs	Approval Agency	Size / Dimension [diameter]	Size / Dimension [diameter]	Dimming	Voltage - Output
EPtronics, Inc. LD25W-36-C0700-RD	100 VAC	Wire Leads	25 W	AC DC Converter	305 VAC	Constant Current	IP66	-40 °C	60 °C	Chassis Mount	0.444 lb	201.3 g	OCP, OVP, SCP	C22.2, UL 8750	83 %	36 V	18 V	2500 V	700 mA	10 V	0 V	78 mm	25.1 mm	3.09 "	0.99 "	3.07 in	78.5 mm	1	CE, cURus, FCC
EPtronics, Inc. LD25W-72-C0350	90 VAC	Wire Leads	25 W	AC DC Converter	305 VAC	Constant Current	IP66	-30 ░C	60 °C	Chassis Mount			OCP, OVP, SCP		86 %	72 V	24 V	3750 V	350 mA				25.1 mm		0.99 "			1	CE, cURus, FCC	3.15 in	80 mm	Analog, PWM
EPtronics, Inc. LD25W-24-C1040	90 VAC	Wire Leads	25 W	AC DC Converter	305 VAC	Constant Current	IP66	-30 ░C	60 °C	Chassis Mount			OCP, OVP, SCP			24 V	8 V	3750 V	1.04 A				25.1 mm		0.99 "			1	CE, cURus, FCC	3.15 in	80 mm	Analog, PWM
EPtronics, Inc. LD25W-20-C1250-RD	100 VAC	Wire Leads	25 W	AC DC Converter	305 VAC	Constant Current	IP66	-40 °C	60 °C	Chassis Mount	0.444 lb	201.3 g	OCP, OVP, SCP	C22.2, UL 8750				2500 V	1.25 A	10 V	0 V	78 mm	25.1 mm	3.09 "	0.99 "	3.07 in	78.5 mm	1	CE, cURus, FCC
EPtronics, Inc. LD25W-24-C1040-RD	100 VAC	Wire Leads	25 W	AC DC Converter	305 VAC	Constant Current	IP66	-40 °C	60 °C	Chassis Mount	0.444 lb	201.3 g	OCP, OVP, SCP	C22.2, UL 8750		24 V	12 V	2500 V	1.04 A	10 V	0 V	78 mm	25.1 mm	3.09 "	0.99 "	3.07 in	78.5 mm	1	CE, cURus, FCC
EPtronics, Inc. LD25W-36	90 VAC	Wire Leads	25 W	AC DC Converter	305 VAC	Constant Voltage	IP66	-30 ░C	60 °C	Chassis Mount	0.444 lb	201.3 g	OCP, OVP, SCP	C22.2, UL 8750	83 %			3750 V	700 mA			78 mm	25.1 mm	3.09 "	0.99 "	3.07 in	78.5 mm	1	CE, cURus, FCC			Non-Dimmable	36 V
EPtronics, Inc. LD25W-12-C2080-RD	90 VAC	Wire Leads	25 W	AC DC Converter	305 VAC	Constant Current	IP66	-30 ░C	60 °C	Chassis Mount			OCP, OVP, SCP		78 %	12 V	4 V	3750 V	2.08 A				25.1 mm		0.99 "			1	CE, cURus, FCC	3.15 in	80 mm	Analog, PWM
EPtronics, Inc. LD25W-16-C1560-RD	90 VAC	Wire Leads	25 W	AC DC Converter	305 VAC	Constant Current	IP66	-30 ░C	60 °C	Chassis Mount			OCP, OVP, SCP		81 %	16 V	6 V	3750 V	1.56 A				25.1 mm		0.99 "			1	CE, cURus, FCC	3.15 in	80 mm	Analog, PWM
EPtronics, Inc. LD25W-36-C0700	90 VAC	Wire Leads	25 W	AC DC Converter	305 VAC	Constant Current	IP66	-30 ░C	60 °C	Chassis Mount			OCP, OVP, SCP		83 %	36 V	12 V	3750 V	700 mA				25.1 mm		0.99 "			1	CE, cURus, FCC	3.15 in	80 mm	Analog, PWM
EPtronics, Inc. LD25W-24	90 VAC	Wire Leads	25 W	AC DC Converter	305 VAC	Constant Voltage	IP66	-30 ░C	60 °C	Chassis Mount	0.444 lb	201.3 g	OCP, OVP, SCP	C22.2, UL 8750				3750 V	1.04 A			78 mm	25.1 mm	3.09 "	0.99 "	3.07 in	78.5 mm	1	CE, cURus, FCC			Non-Dimmable	24 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

LD25W Series

350mA 24 ~ 72V Constant Current LED Driver AC DC Converter Topology 1 Output
