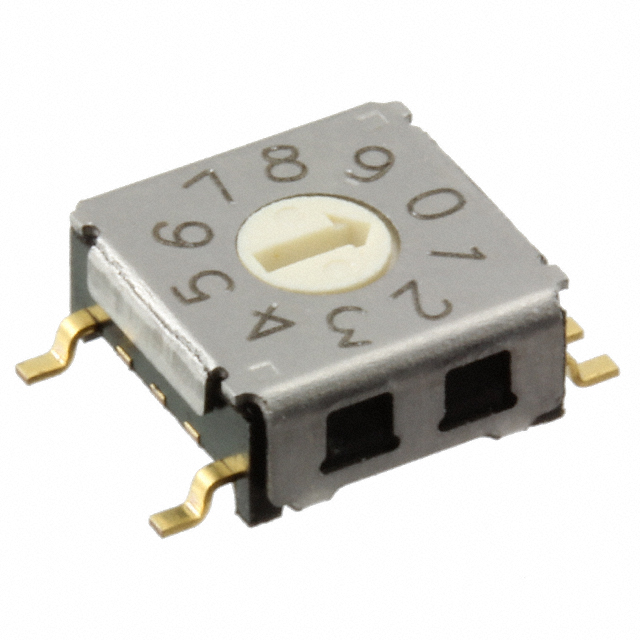

Specification	A6KS-104RF-R100

Actuator Level	Flush, Recessed
Actuator Type	Rotary for Tool
Circuit	BCD
Contact Finish	Gold
Current Rating	0.025 A
Electrical Life (Steps)	20000 Steps
Height Above Board	0.118 in
Length	0.283 in
Mounting Type	Surface Mount
Number of Positions	10
Operating Temperature (Max)	80 °C
Operating Temperature (Min)	-30 °C
Pitch	0.05 in
Pitch Type	Half
Termination Style	Gull Wing
Voltage Rating	24 V
Washable	No

A6KS Series

DIP Switches / SIP Switches 16P 3x3 TERM SMT Top-actuated flat

Part	Electrical Life (Steps)	Length	Voltage Rating	Contact Finish	Current Rating	Washable	Height Above Board	Mounting Type	Circuit	Termination Style	Actuator Type	Operating Temperature (Min)	Operating Temperature (Max)	Actuator Level	Pitch	Pitch Type	Number of Positions
Omron Electronics Inc-EMC Div A6KSV-104RS	20000 Steps	0.283 in	24 V	Gold	0.025 A	No	0.293 in	Right Angle Surface Mount	BCD	Gull Wing	Rotary with Shaft	-30 °C	80 °C	Raised	0.05 in	Half	10
Omron Electronics Inc-EMC Div A6KSV-164RF	20000 Steps	0.283 in	24 V	Gold	0.025 A	No	0.293 in	Right Angle Surface Mount	Hexadecimal	Gull Wing	Rotary for Tool	-30 °C	80 °C	Flush Recessed	0.05 in	Half	16
Omron Electronics Inc-EMC Div A6KS-164RS-R100	20000 Steps	0.283 in	24 V	Gold	0.025 A	No	0.236 in	Surface Mount	Hexadecimal	Gull Wing	Rotary with Shaft	-30 °C	80 °C	Raised	0.05 in	Half	16
Omron Electronics Inc-EMC Div A6KSV-104RS-R100	20000 Steps	0.283 in	24 V	Gold	0.025 A	No	0.293 in	Right Angle Surface Mount	BCD	Gull Wing	Rotary with Shaft	-30 °C	80 °C	Raised	0.05 in	Half	10
Omron Electronics Inc-EMC Div A6KS-162RF-R100	20000 Steps	0.283 in	24 V	Gold	0.025 A	No	0.118 in	Surface Mount	Hexadecimal	Gull Wing	Rotary for Tool	-30 °C	80 °C	Flush Recessed	0.1 in	Full	16
Omron Electronics Inc-EMC Div A6KS-164RF	20000 Steps	0.283 in	24 V	Gold	0.025 A	No	0.118 in	Surface Mount	Hexadecimal	Gull Wing	Rotary for Tool	-30 °C	80 °C	Flush Recessed	0.05 in	Half	16
Omron Electronics Inc-EMC Div A6KS-162RS-R100	20000 Steps	0.283 in	24 V	Gold	0.025 A	No	0.236 in	Surface Mount	Hexadecimal	Gull Wing	Rotary with Shaft	-30 °C	80 °C	Raised	0.1 in	Full	16
Omron Electronics Inc-EMC Div A6KSV-164RS	20000 Steps	0.283 in	24 V	Gold	0.025 A	No	0.293 in	Right Angle Surface Mount	Hexadecimal	Gull Wing	Rotary with Shaft	-30 °C	80 °C	Raised	0.05 in	Half	16
Omron Electronics Inc-EMC Div A6KS-164RF-R100	20000 Steps	0.283 in	24 V	Gold	0.025 A	No	0.118 in	Surface Mount	Hexadecimal	Gull Wing	Rotary for Tool	-30 °C	80 °C	Flush Recessed	0.05 in	Half	16
Omron Electronics Inc-EMC Div A6KS-162RF	20000 Steps	0.283 in	24 V	Gold	0.025 A	No	0.118 in	Surface Mount	Hexadecimal	Gull Wing	Rotary for Tool	-30 °C	80 °C	Flush Recessed	0.1 in	Full	16
