MDM-69SL2K
ActiveITT Cannon, LLC

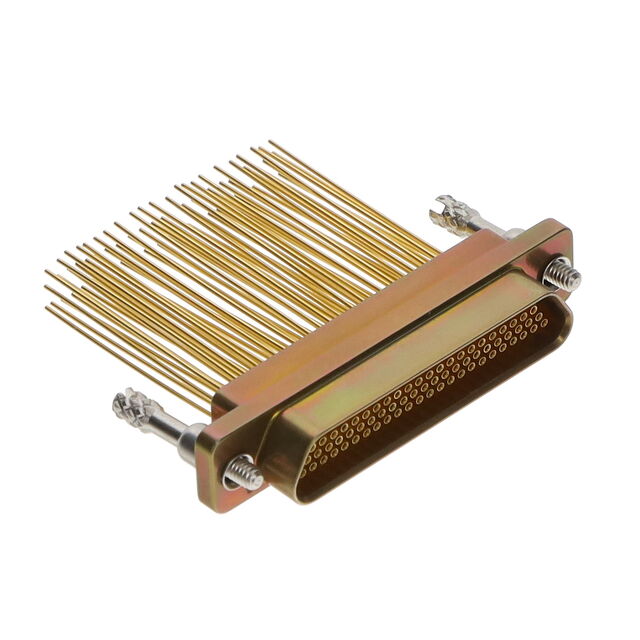

MICRO D CABLE ASSEMBLY, MICRO-D RECEPTACLE TO FREE END, 69 POSITIONS, 1 ", 25.4 MM, MDM SERIES
MDM-69SL2K
ActiveITT Cannon, LLC
MICRO D CABLE ASSEMBLY, MICRO-D RECEPTACLE TO FREE END, 69 POSITIONS, 1 ", 25.4 MM, MDM SERIES
Description
General part information
MDM-69SL2K
D-Sub Cable Assembly D-Type, Micro-D 0.083' (25.40mm, 1.00") Receptacle, Female Sockets to Individual Wire Leads Unshielded
Technical Specifications
Parameters and characteristics for this part
| Specification | MDM-69SL2K |
|---|---|
| 1st Connector | Female Sockets, Receptacle |
| 2nd Connector | Individual Wire Leads |
| Contact Finish | Gold |
| Length | 0.083 ft |
| Number of Positions | 69 |
| Shielding | Unshielded |
| Type | Micro-D, D-Type |
