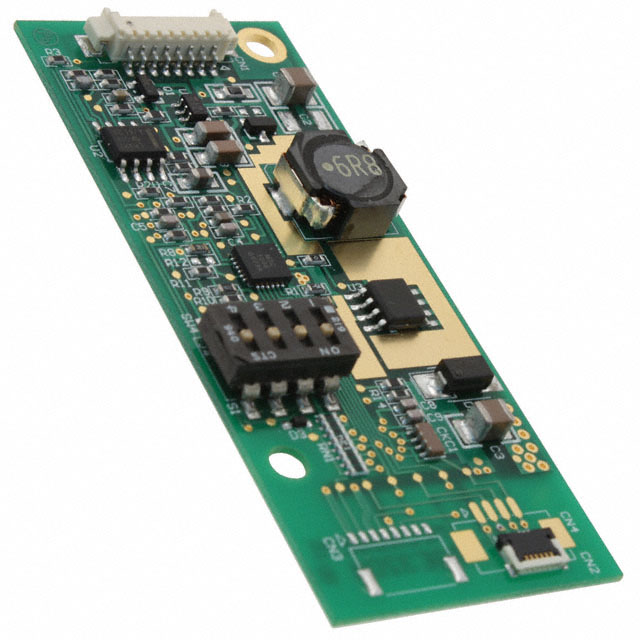

LXMG1930-28-01
ObsoleteMicrosemi Corporation
LED DRIVER CC BOOST 35V 50MA
LXMG1930-28-01
ObsoleteMicrosemi Corporation
LED DRIVER CC BOOST 35V 50MA
Description
General part information
LXMG1930-28-01
50mA 35V (Max) Constant Current LED Driver Boost Topology 3 Output
Technical Specifications
Parameters and characteristics for this part
| Specification | LXMG1930-28-01 |
|---|---|
| Current - Output (Max) | 50 mA |
| Dimming | PWM, Analog |
| Efficiency | 85 % |
| Features | SCP, OTP, OVP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 3 |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -30 °C |
| Power (Watts) | 5 W |
| Size / Dimension Height | 0.24 in |
| Size / Dimension Length | 2.72 in |
| Size / Dimension Width | 1.1 in |
| Termination Style | Terminal Block |
| Topology | Boost |
| Type | Constant Current |
| Voltage - Input (Max) | 28 V |
| Voltage - Input (Min) | 4.75 V |
| Voltage - Output | 35 V |
