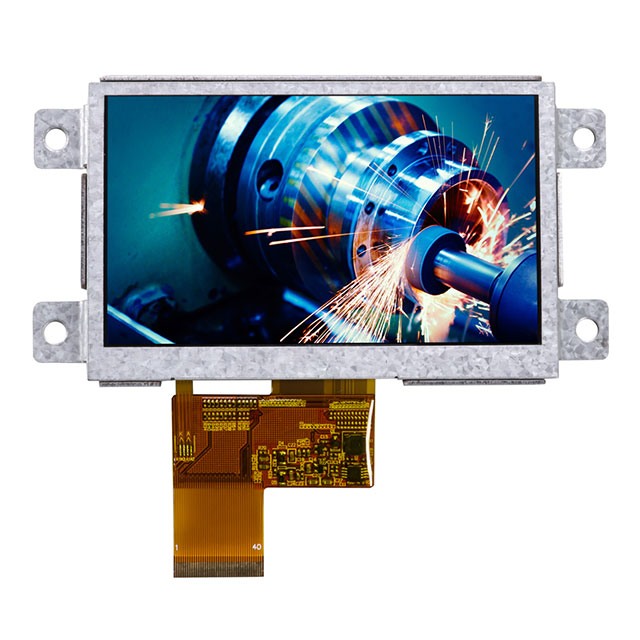

NHD-4.3-800480MB-ASXP
ActiveNewhaven Display Intl
4.3" MOUNTABLE IPS TFT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NHD-4.3-800480MB-ASXP
ActiveNewhaven Display Intl
4.3" MOUNTABLE IPS TFT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NHD-4.3-800480MB-ASXP |
|---|---|
| Backlight | LED - White |
| Controller Type | EK73002AB3, EK9716BE3 |
| Diagonal Screen Size | 109.22 mm |
| Diagonal Screen Size | 4.3 in |
| Display Mode | Transmissive |
| Display Type | TFT - Color, IPS (In-Plane Switching) |
| Dot Pixels [x] | 800 |
| Dot Pixels [y] | 480 |
| Graphics Color | Green, Red, Blue |
| Interface | 24-Bit (RGB) |
| Touchscreen | Non-Touch |
| Viewing Area [x] | 95.04 mm |
| Viewing Area [y] | 53.86 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 50.29 | |
| 5 | $ 47.27 | |||
| 10 | $ 44.26 | |||
| 50 | $ 41.74 | |||
| 100 | $ 40.51 | |||
Description
General part information
NHD-4.3-800480MB-ASXP
Non-Touch Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color, IPS (In-Plane Switching) 24-Bit (RGB) 4.3" (109.22mm) 800 x 480
