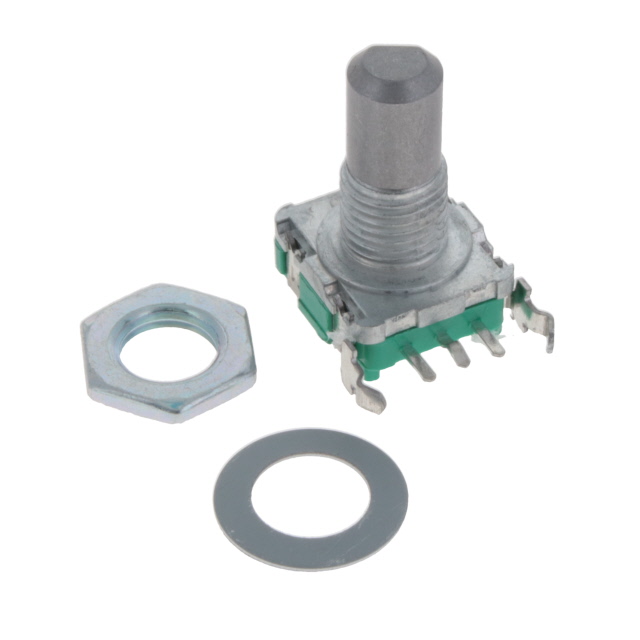

PRS11R-215F-N103B1
ActiveBourns Inc.
POT 10K OHM 1/20W LINEAR
PRS11R-215F-N103B1
ActiveBourns Inc.
POT 10K OHM 1/20W LINEAR
Description
General part information
PRS11R-215F-N103B1
10k Ohm 1 Gang Linear Through Hole Potentiometer 1.0 Turns 0.05W, 1/20W PC Pins
Technical Specifications
Parameters and characteristics for this part
| Specification | PRS11R-215F-N103B1 |
|---|---|
| Actuator Diameter | 0.236 in |
| Actuator Length | 0.591 in |
| Actuator Type | Flatted |
| Adjustment Type | Side Adjustment |
| Built in Switch | None |
| Bushing Thread | M7 x 0.75 |
| Bushing Thread Diameter | 7 mm |
| Bushing Thread Pitch | 0.75 mm |
| Mounting Type | Through Hole |
| Number of Gangs | 1 |
| Number of Turns | 1 turns |
| Power (Watts) | 50 mW |
| Power (Watts) Options | 1/20W |
| Resistance | 10 kOhm |
| Rotation | 300 ° |
| Size - Body Face Length | 0.512 in |
| Size - Body Face Width | 0.461 in |
| Size - Body Shape | Square |
| Taper | Linear |
| Termination Style | PC Pins |
| Tolerance | 20 % |
