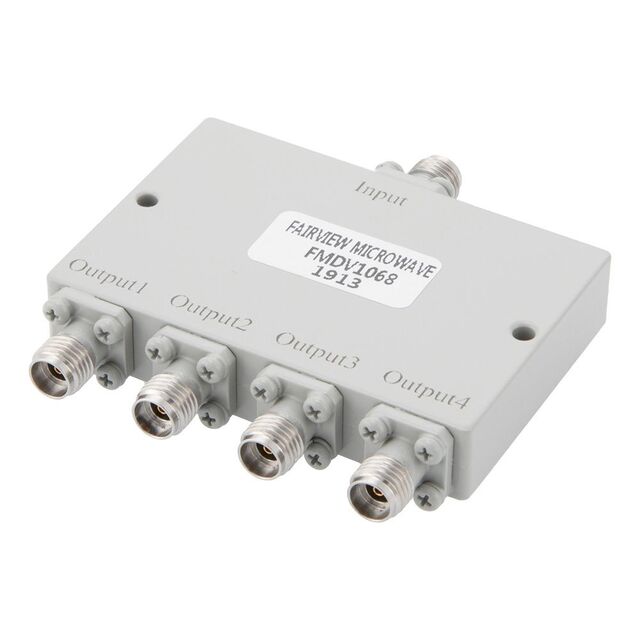

FMDV1068
ActiveFairview Microwave
POWER DIVIDER 40 GHZ 2.92MM
FMDV1068
ActiveFairview Microwave
POWER DIVIDER 40 GHZ 2.92MM
Description
General part information
FMDV1068
RF Power Divider 6 GHz ~ 40 GHz Isolation (Min) 15dB, 8° Imbalance (Max), 2 VSWR (Max) Module
Technical Specifications
Parameters and characteristics for this part
| Specification | FMDV1068 |
|---|---|
| Frequency (Max) | 40 GHz |
| Frequency (Min) | 6 GHz |
| Imbalance (Max) | 8 ° |
| Insertion Loss | 2 dB |
| Isolation (Min) | 15 dB |
| Package / Case | Module |
| Size / Dimension Height | 0.404 in |
| Size / Dimension Length | 2.047 in |
| Size / Dimension Width | 1.378 in |
| VSWR (Max) | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
